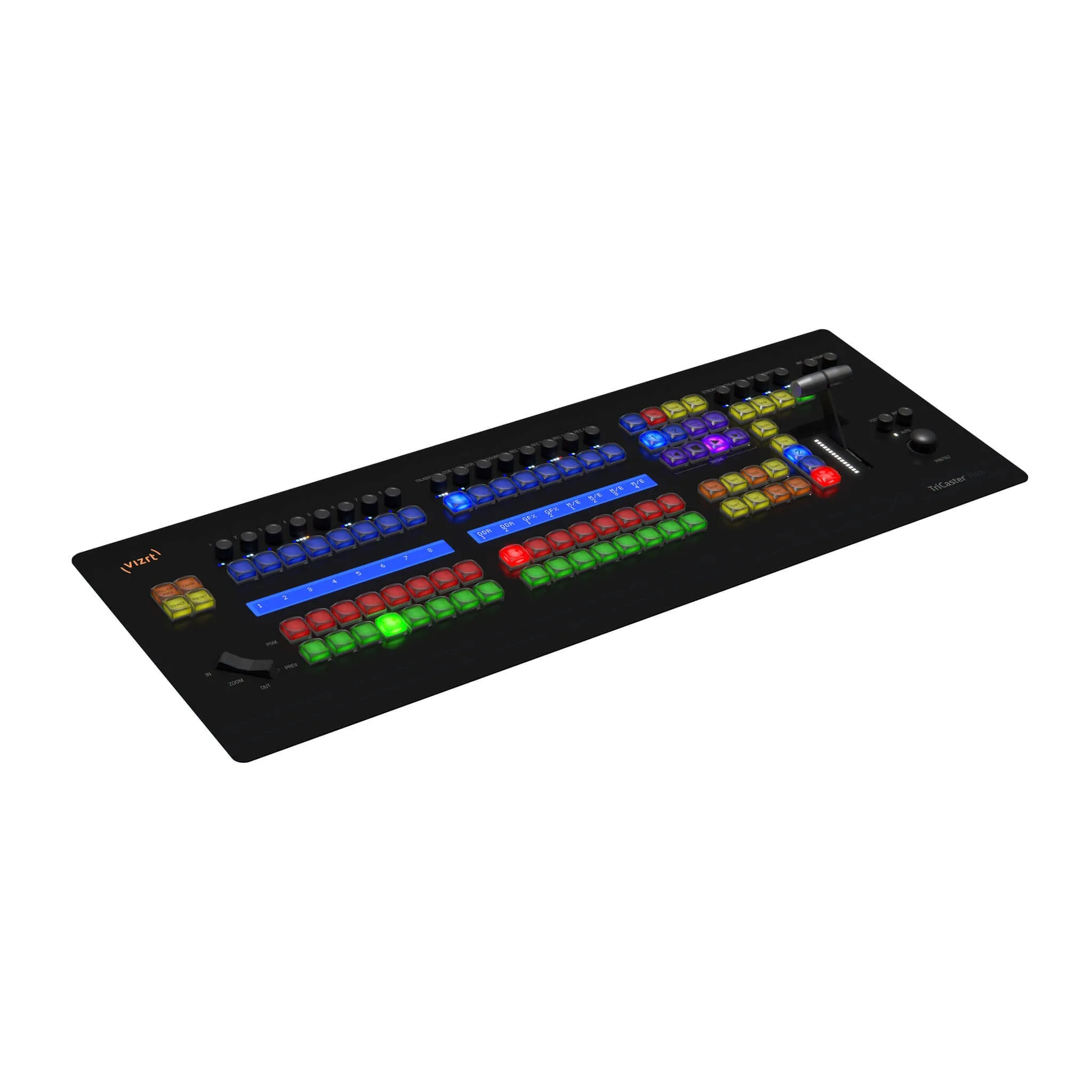

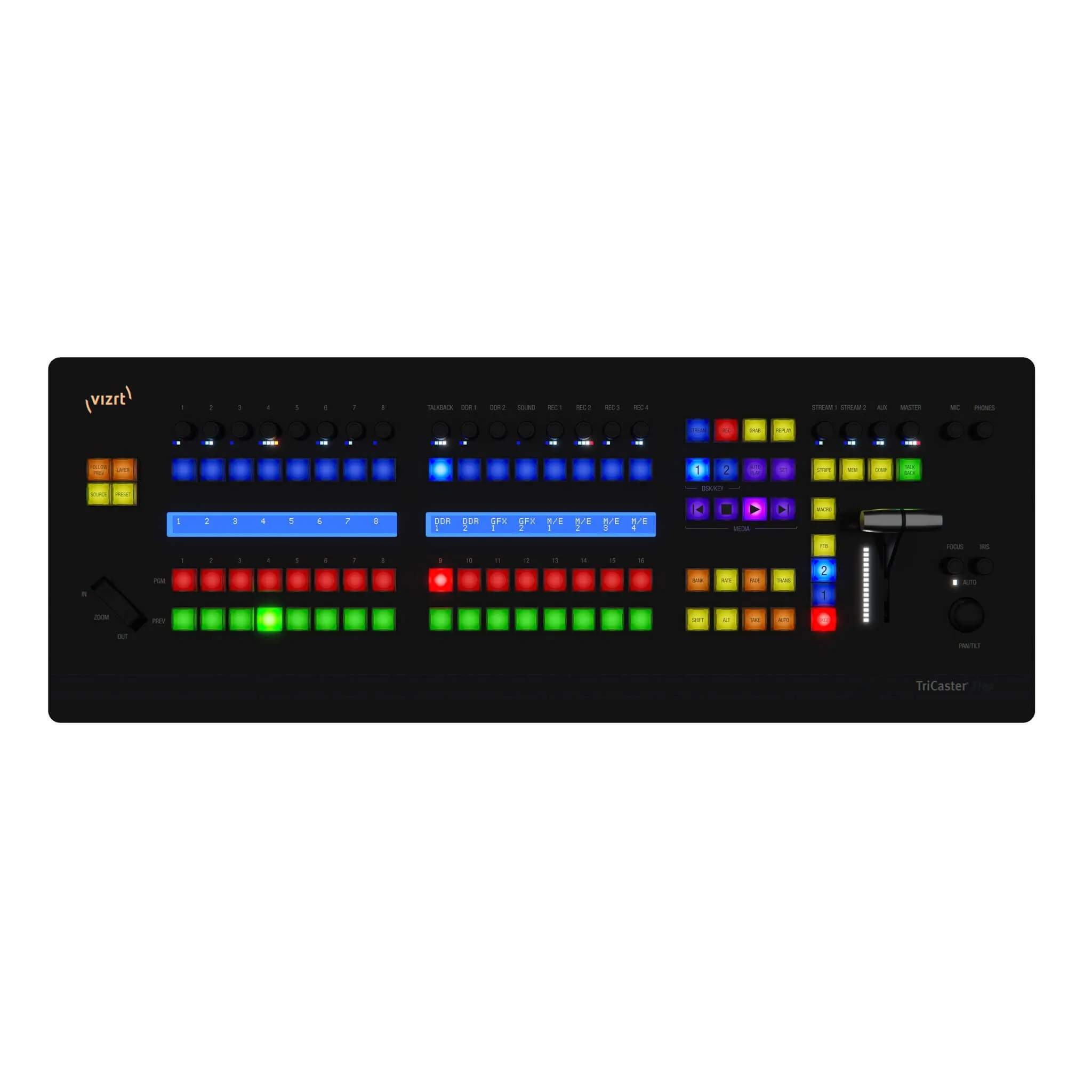

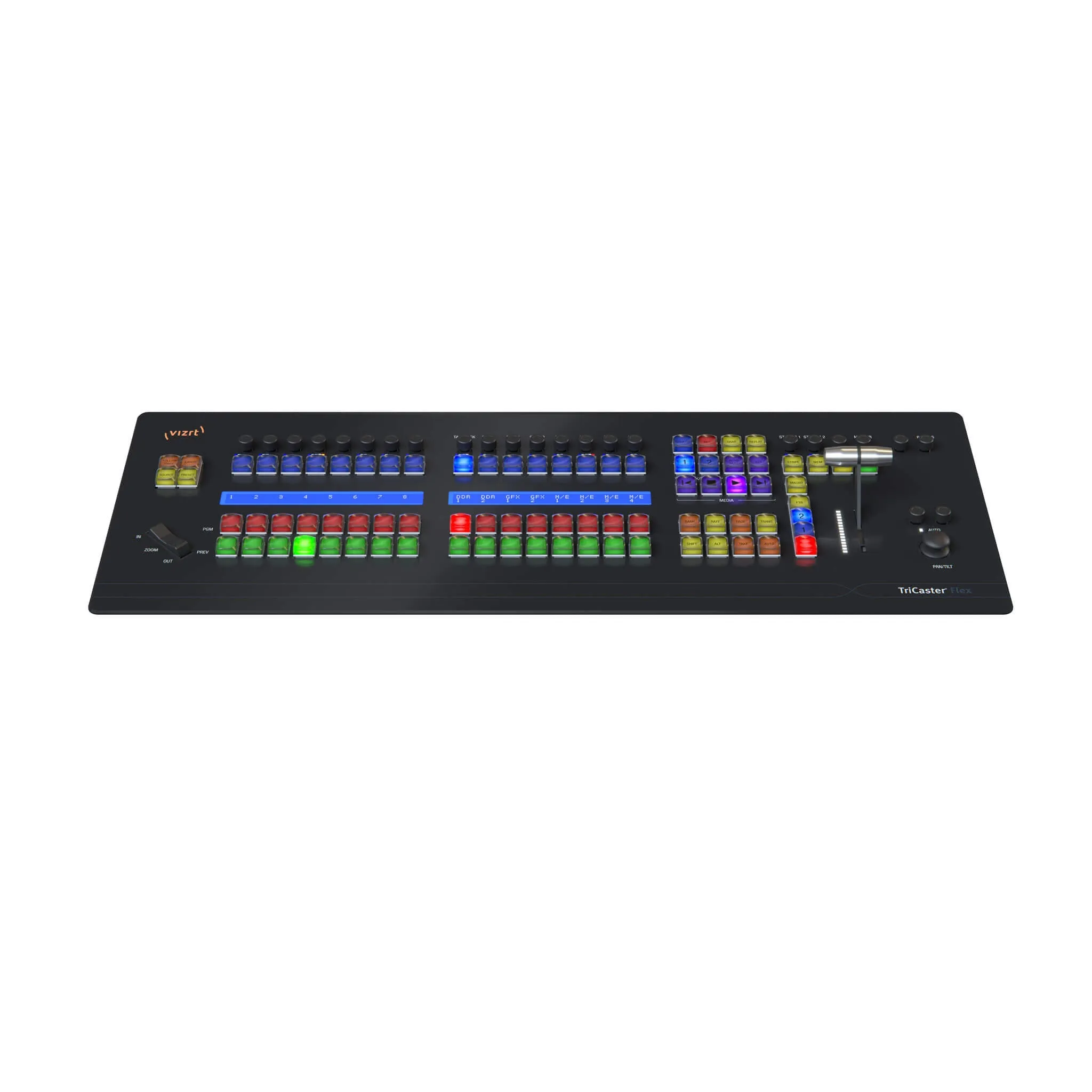

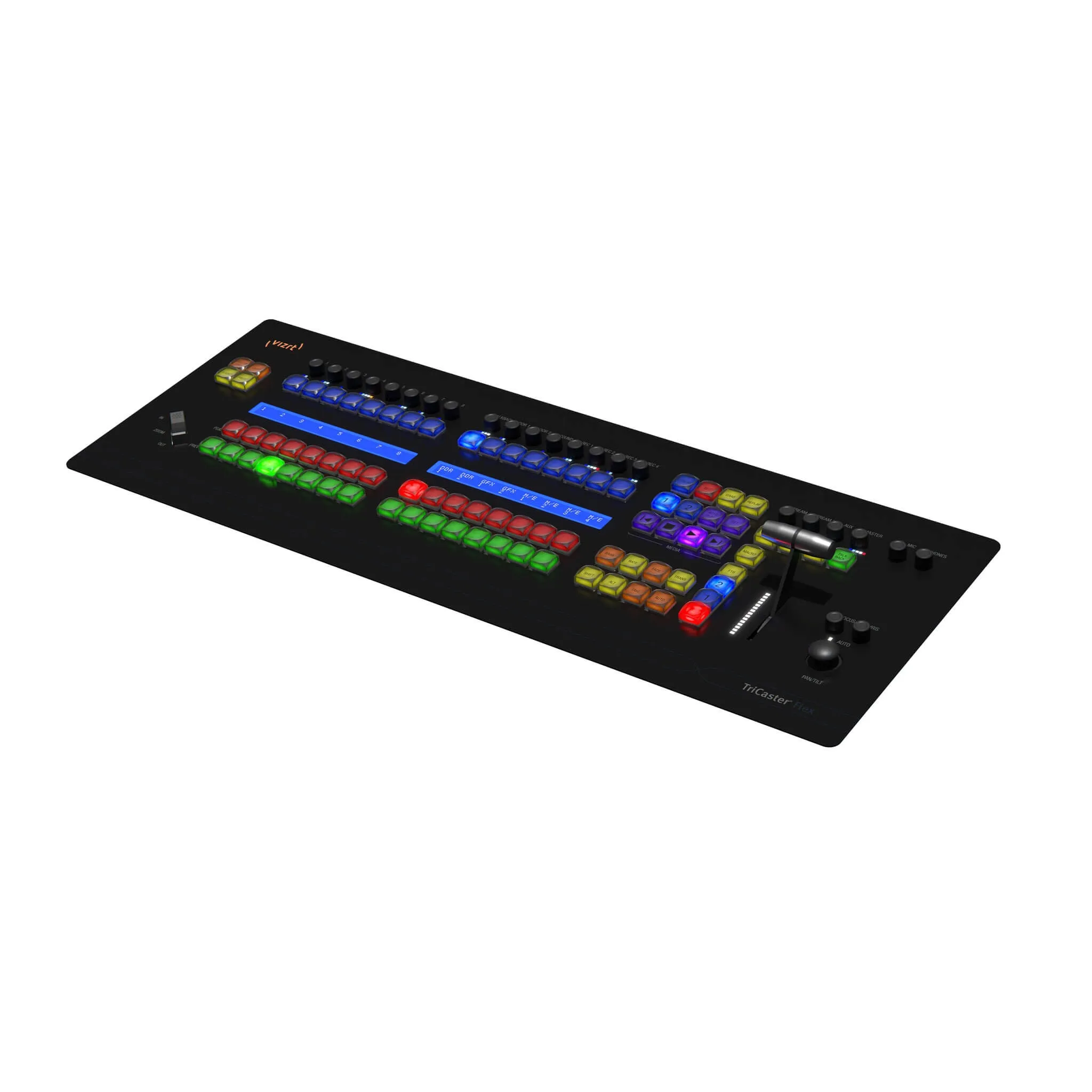

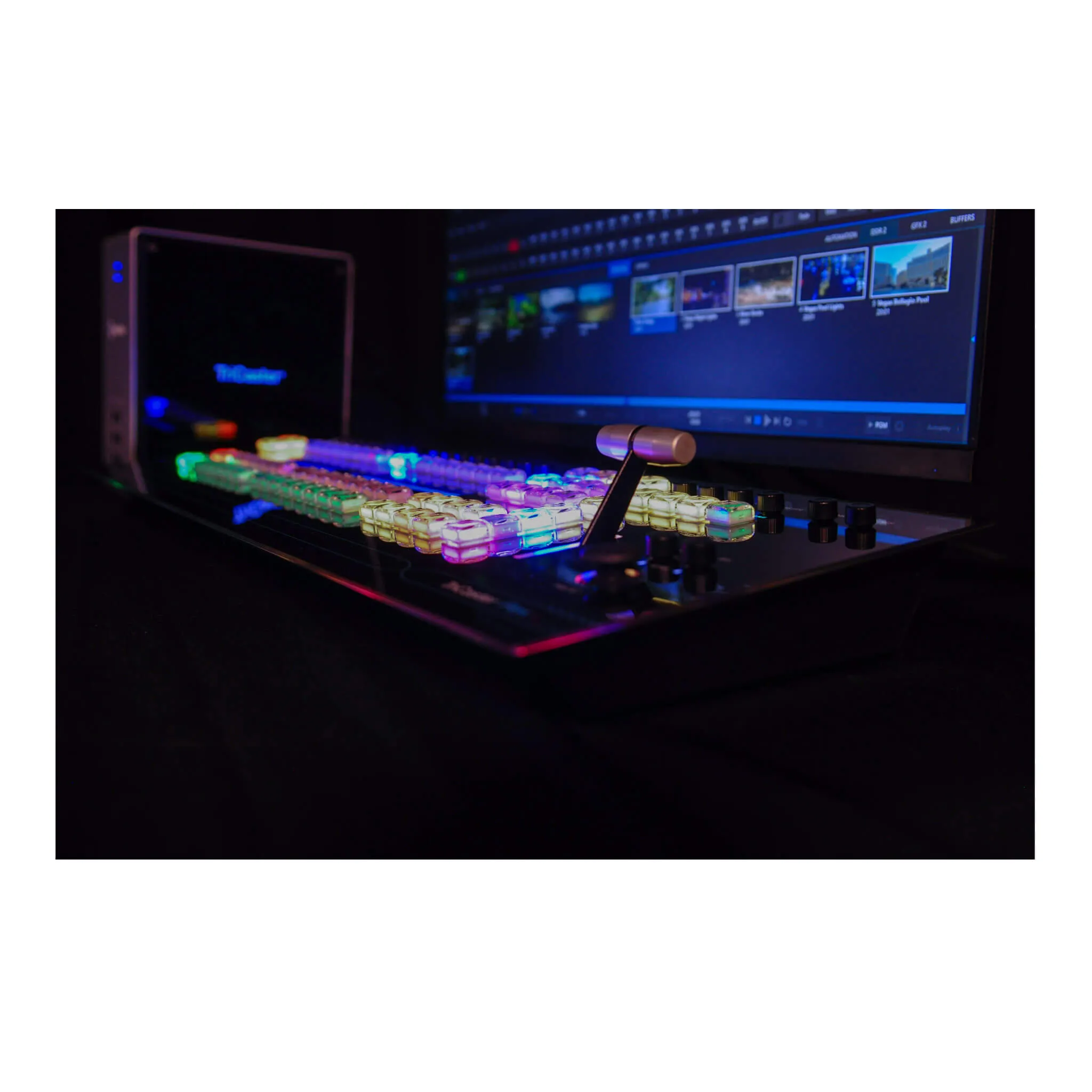

Use this Vizrt Flex Control Panel in conjunction with your TriCaster system to mix audio and video, control PTZ cameras, expand audio inputs and outputs, incorporate NDI connectivity, and enable talkback communication in your studio space all from a single panel. Tactile manual control buttons, a T-bar, and two rows labeled LCD screens provide an intuitive control experience.

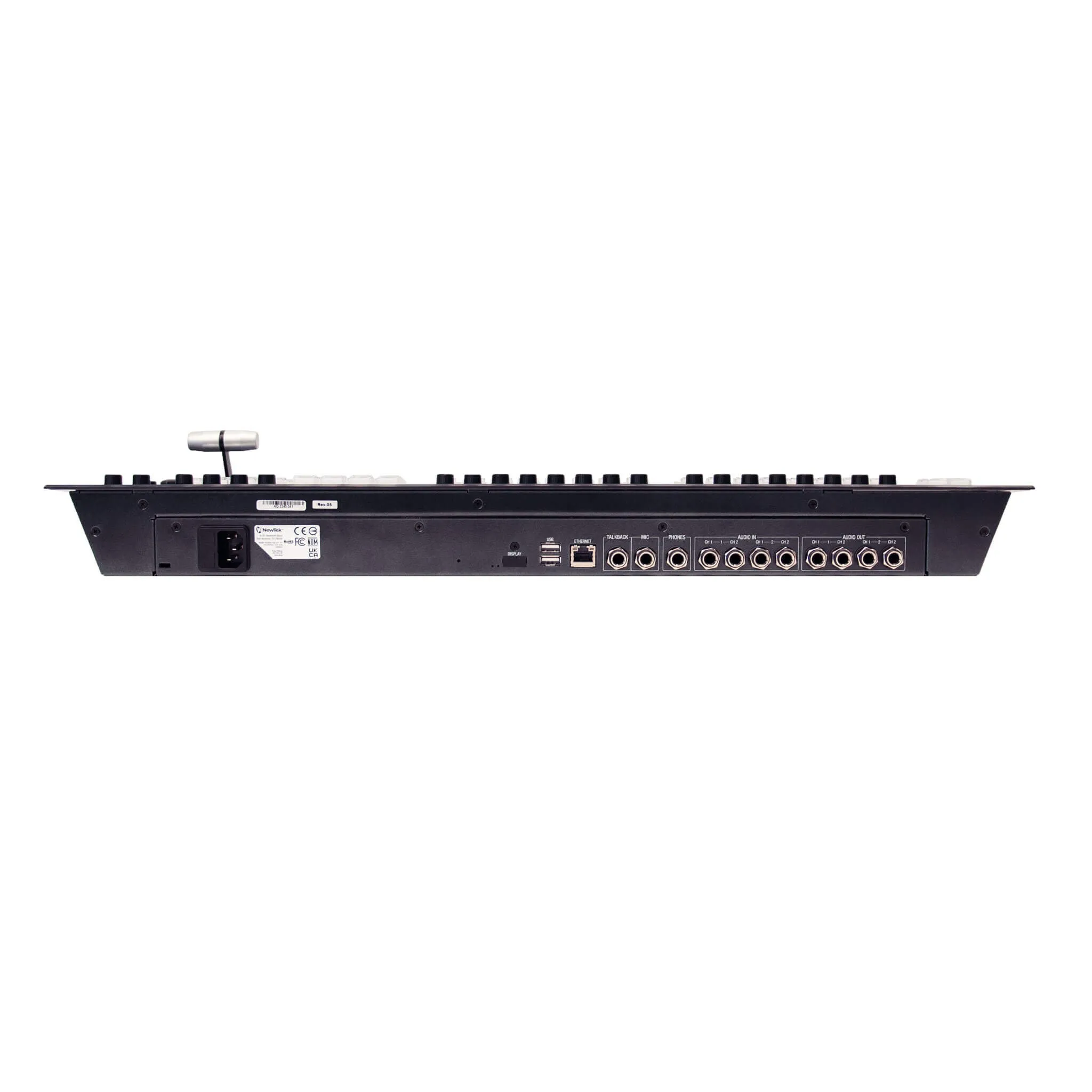

The back of the panel features two pairs of 1/4" stereo audio inputs and two pairs of 1/4" stereo audio outputs, expanding your audio ecosystem. An RJ45 Ethernet port enables NDI connection. You can communicate with your camera operators and talent using talkback and microphone inputs, as well as a headphone output port.

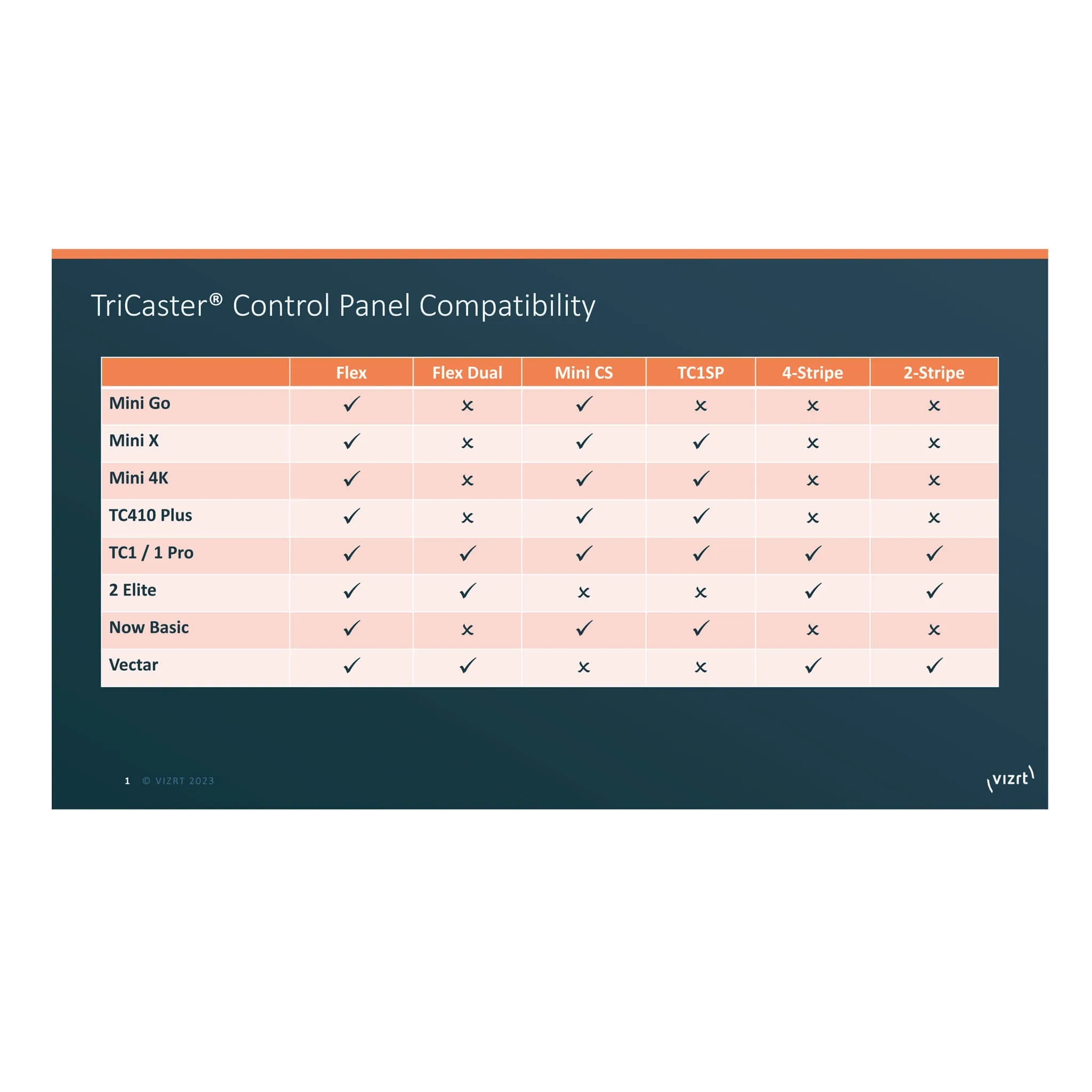

Compatible TriCaster Systems

Vizrt TriCaster 2 Elite

Vizrt TriCaster TC1 / 1 Pro

Vizrt TriCaster TC410 Plus

Vizrt TriCaster Mini 4K

Vizrt TriCaster Mini X

Vizrt TriCaster Mini GO

Vizrt TriCaster Now Basic

Vizrt TriCaster Vectar

Features

• Intuitive layout mapped to the Video Mix Engine user interface

• IP-based connectivity with support for multi-engine control over the network

• Responsive multi-bus operation with independently assignable control stripes

• Practical lighting, variable T-bar illumination, and dynamic LCD label displays

• Precision controls for expert handing of real-time video operations

Controls

• 16 direct crosspoints, including bank and stripe functions

• Row lighting color follows the delegated UI

• 2 x 40 character, two row LCD screens

• PTZ control delegation and the zoom rocker

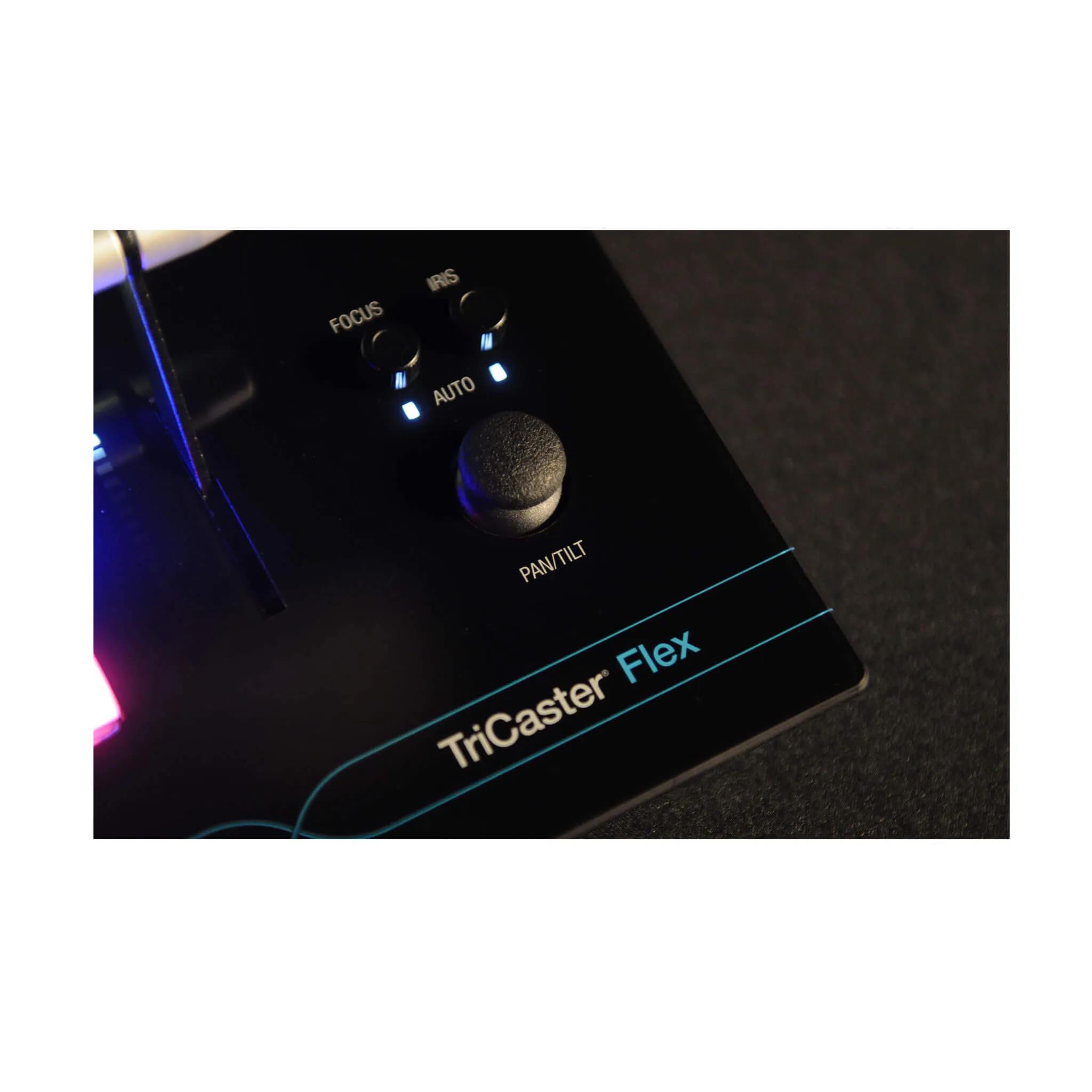

• Mini joystick for pan, tilt, focus, and iris control with auto function

• 12 fader controls for audio inputs/outputs, talkback, DDR 1-2, sound, and record 1–4
• Four fader controls for stream 1 and 2, aux and master output, mic and headphone level
• Media players and macro controls
• Stream, capture, and reply
• Transitions and T-bar
