Features:
• Up to 7 Mile Line-Of-Sight
• 12 User-Selectable Channels
• 2 Alarms/Channel
• Audio Transmission with
• Optional Stereo
• Data Pass-Through-Mode
• Dual Virtual Wire? Contact Closures

  System Includes:

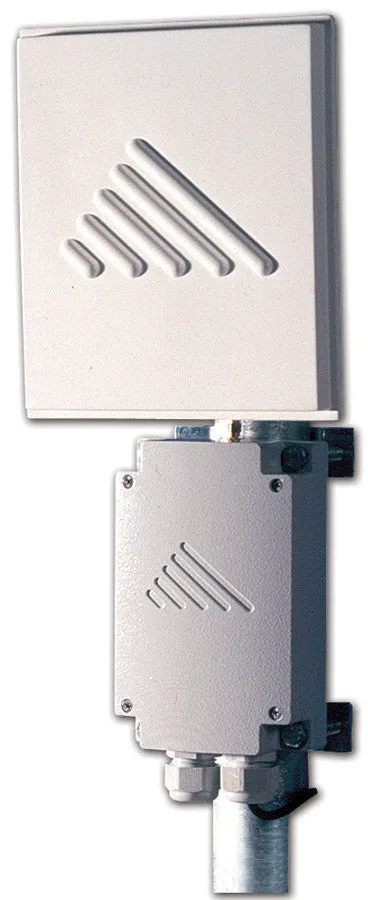

• 1 VTX5900 and 1VRX5900 all weather transmitter & receiver
• 2 PT07800-1 7 Vdc power supplies
• 15dB helical transmitter antenna (required)
• 15dB (1-Mile), 27dB (4-Mile Parabolic) or 30dB (7-Mile Parabolic) receiver antenna

  Specifications:
• Range: Up to 7 miles maximum line-of-sight (depending on receiver antenna selection)
• Power: 7-12 Vdc (7 Vdc nominal)
• Current Draw: 220mA typ., 30mA standby (transmitter) 500mA typ., (receiver)
• Audio: RCA-F, range 50 Hz to 15 kHz
• Video: BNC-F
• Data: RJ11 jack for connection to PC with TrangoLink? Software
• Dimensions: 4.6" x 8.8" x 2.5" (11.7 cm x 22.4 cm x 6.4 cm)
• Mounting: Wall or pole up to 3" diameter

Note: This item ships at an oversize rate when being shipped priority air freight. Please call for a quote.
