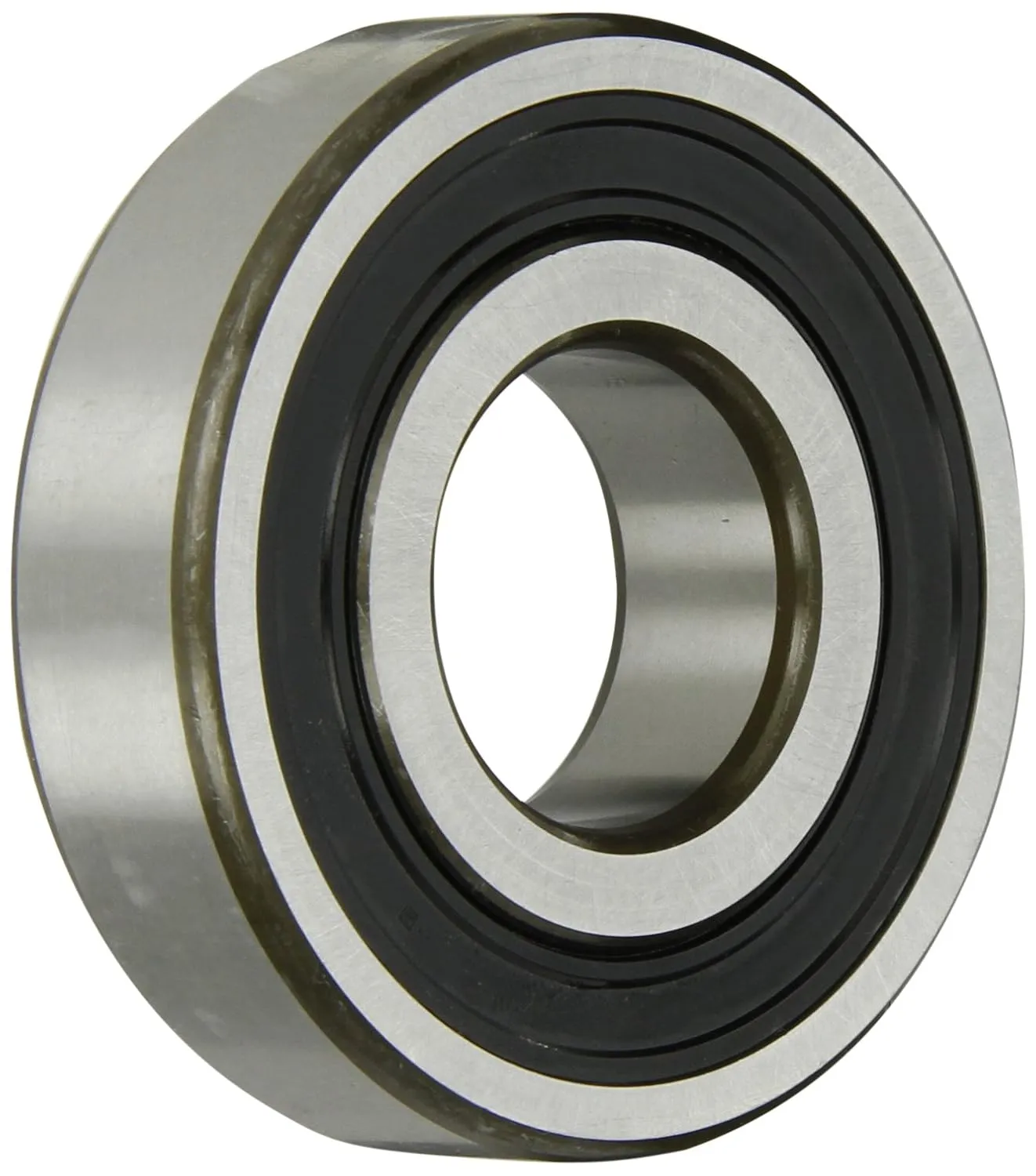

The SKF single-row, double-sealed radial bearing has symmetric races to support radial loads while maintaining high speeds and rotational accuracy. It conforms to the precision standard Annular Bearing Engineers Committee (ABEC) 1 for performance within a narrow range of variation, and its deep grooves make it capable of supporting heavier loads than standard grooves and keeping balls stable for high speeds. It has a C3 radial internal clearance for radial slack between the inner and outer rings that is greater than CN (normal) to compensate for thermal expansion, and its standard cage evenly spaces the rollers for even load distribution and prevents contact to reduce friction, vibrations, and noise. It has rubber seals on both sides of the bearing to keep lubricant in and contaminants out. This radial ball bearing is suitable for use in general purpose applications that primarily involve radial loads and minimal axial loads at relatively high rotational speeds. These include transmissions, motors, and pumps, among others.

Specifications

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

SKF Group manufactures bearings and units, seals, mechatronics, and lubrication systems that meet International Organization for Standardization (ISO) 14001 and 9001, and Occupational Health and Safety Assessment Series (OHSAS) 18001 standards for quality assurance. The company, founded in 1907, is headquartered in Göteborg, Sweden.

• Product Dimensions ‏ : ‎ 2.23 x 3.77 x 2.23 inches; 1 Pounds
• Date First Available ‏ : ‎ January 29, 2013
• Manufacturer ‏ : ‎ SKF
