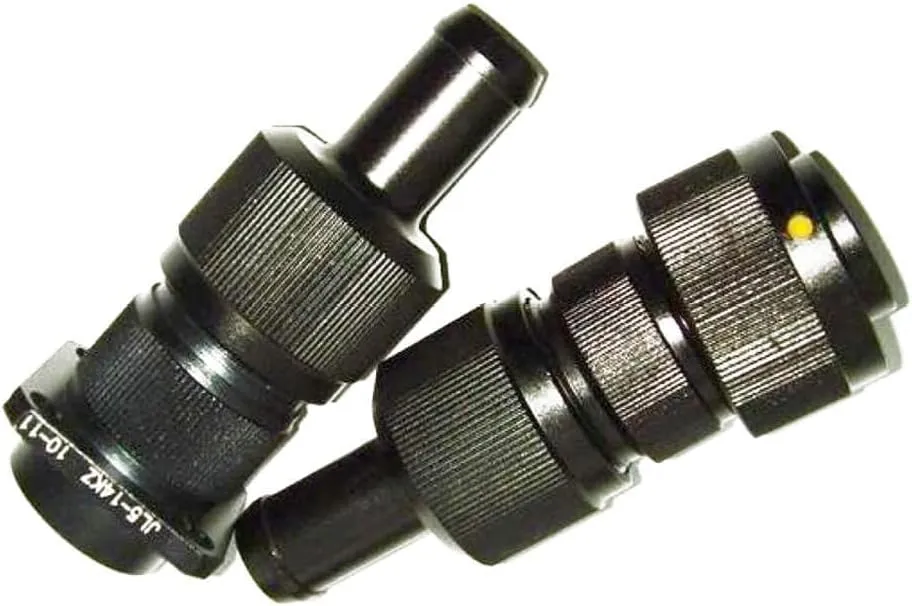

- Traction Motor Connector,JL,Plug,Male,14 Pin,Straight,Bayonet Coupling,Cable,Solder,American-Standard
- The end connection form between the contact piece and the wire is of the crimped type, and the connection form between the plug and the socket is of the fast bayonet connection and the threaded connection;
- Reliable contact, easy operation, reliable mechanical performance, good electrical performance；
- It can be interchanged with similar products at home and abroad;
- High Quality with 30 days 100% Money back;
Applications:
The railway
Rolling stock
Urban rail transit
Mine dock
Industrial equipment electrical system connection, etc
Technical Parameters:
Electrical Characteristics
Rated voltage: ≤500V AC
Rated working voltage: ≤1200V AC
Rated current: ≤15A
Rated working current: ≤40A
Insulation resistance: 2000 m Ω or higher
Withstand voltage: Max. 4500V AC
Mechanical Characteristics
Mechanical life: 500/750 times
Environmental Characteristics
Temperature range: -40℃ ~ 125℃
Relative humidity: ≤95% (at 40℃)
Flame retardant: UL94V-0
Material:
art
Material
Shell
aluminum alloy
Coating
aluminum alloy
Insulator
plastic
Sealing ring
silicone rubber
Contact
copper allo
