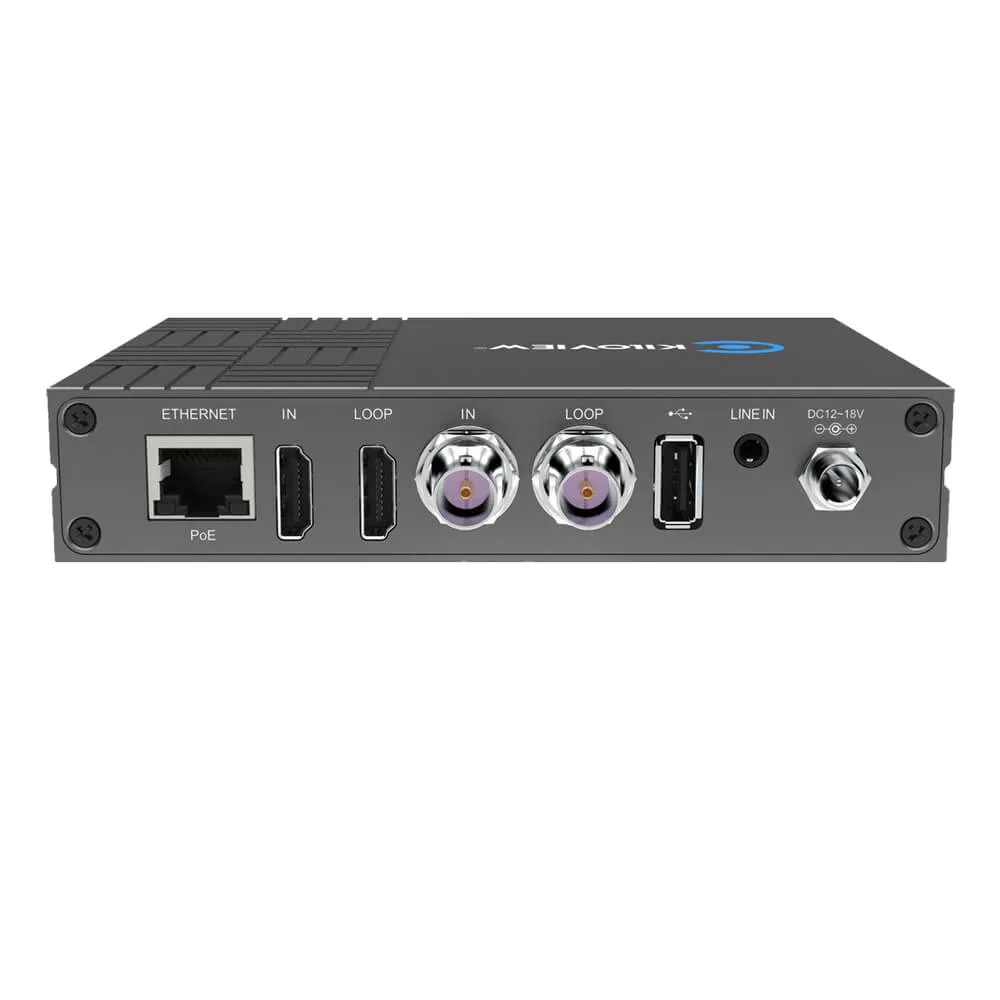

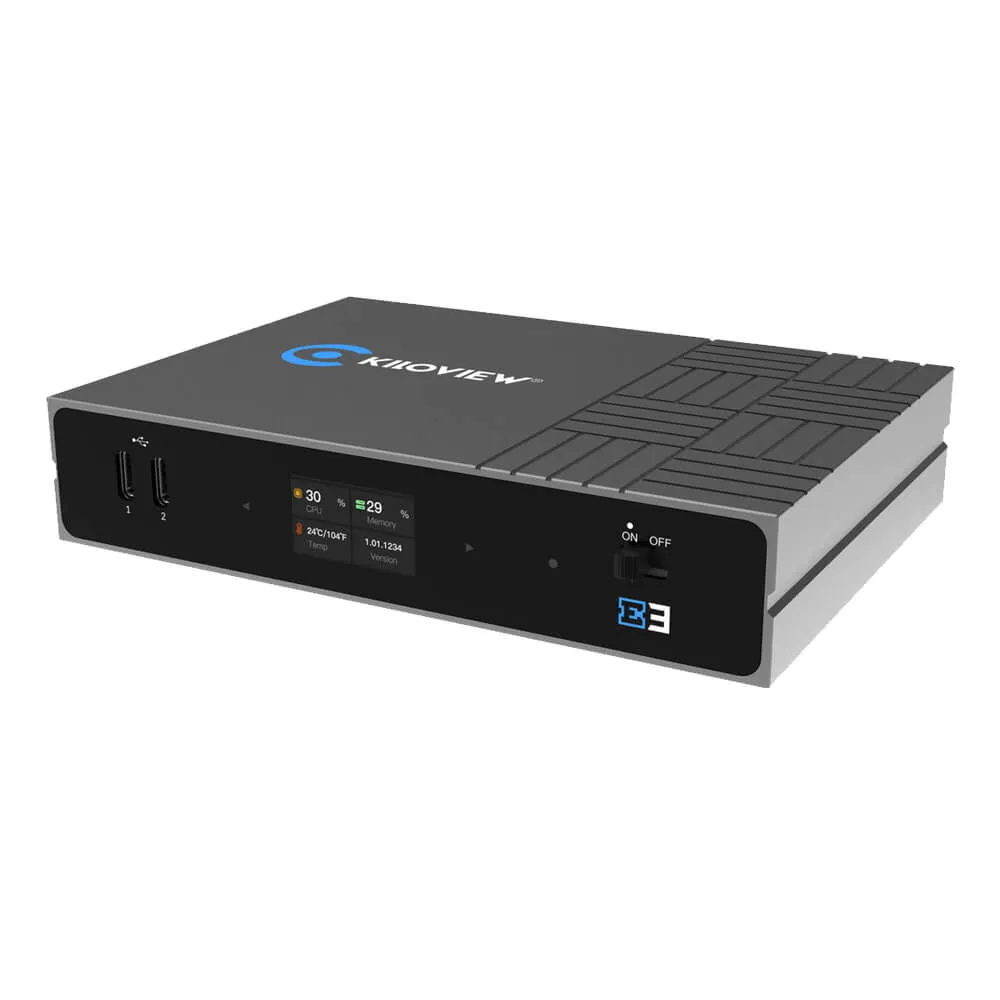

The Kiloview E3 Dual Channel 4K HDMI & 3G-SDI HEVC Video Encoder is a new generation of video encoder that expands on the capabilities of our previous encoder models by adding video input and loop through with HDMI up to 4K P30 and 3G-SDI up to 1080 P60, encoding both HDMI and 3G-SDI video by H.265 and H.264 simultaneously1 or either of the sources or a mix video from both video sources with multi-protocols including NDI|HX2/ NDI|HX3/ With its modern processor and HEVC technology, it can stream to 16 destinations2 at variable bitrates of up to 100Mbps at the same time.
Encoding HDMI and 3G-SDI Inputs
The E3 supports encoding video inputs from either 3G-SDI or HDMI port, blending both video sources into a single output in PIP or PBP mode, and encoding video sources into up to 1080p60 from both HDMI and 3G-SDI ports concurrently for high-quality live streaming.
Flexible Formats Selection
The E3 supports the high-efficiency video codec HEVC in addition to H.264 for all IP-based video transmission procedures. With HEVC support, E3 can maintain video image quality at a reduced bitrate, thereby conserving more than fifty percent of your bandwidth.
Compatible with All Protocols
The E3 supports a wide variety of streaming protocols for diverse applications, including NDI|HX3/NDI|HX2/SRT/RTMP/RTMPS/HLS/TS via UDP/RTP/RTSP/Onvif. It can be used for live production with NDI|HX, remote production with SRT, live streaming with RTMP or HLS, as well as any transmission using any protocol.
Powerful Streaming Capabilities
The input on the E3 is capable of up to 4Kp30 via its HDMI connector and 1080p60 via its 3G-SDI port. With its tremendous output capabilities, E3 can simultaneously go live on up to 16 platforms by outputting in both mainstream (up to 8 channels in 1080p) and substream (up to 720p) with an adjustable bitrate, with a maximum bandwidth of 100Mbps.
Pro-Level Video Processing
E3 can process rotate/crop and add custom overlays such as images, messages, and other OSD to the output video for advanced applications, making it perfect for your webcast.
Multi-Channel Audio Encoding
The E3 allows for encoding audio source through its 3.5mm Line input and SDI/HDMI embedded audio input. You can convert audio into multiple formats, including AAC, MPEG-4, MPEG-3 , MPEG-2, Opus or G.711. E3 supports 8-channel embedded audio encoding of SDI inputs and 4-channel embedded audio encoding of HDMI inputs. Along with more functions including audio de-embedding, channel selection, alternate channel and audio output mapping, E3 is ideal for high efficient program production.

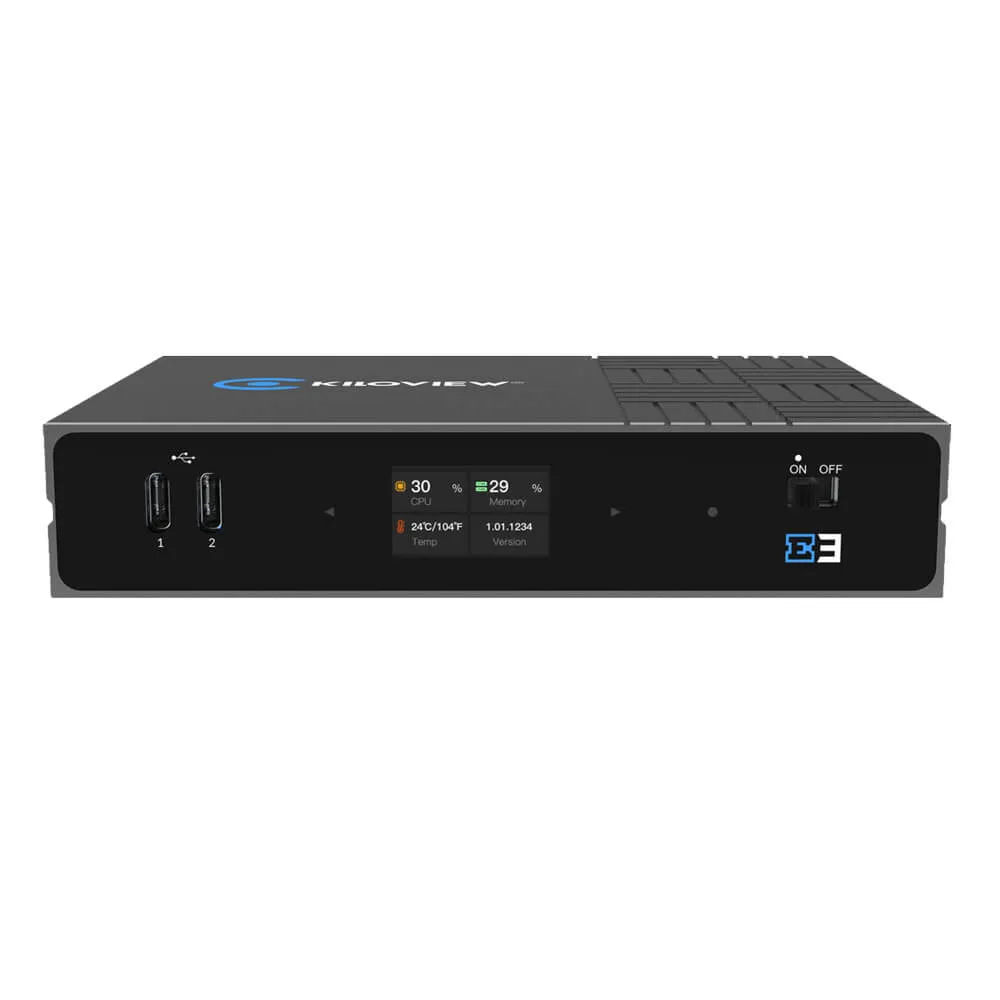

Built-in LCD and Touch Button
Touch buttons enhance E3's 1.14-inch LCD screen. The LCD panel displays real-time connectivity, IP address, CPU, RAM, resolution, temperature, and tally status. The LCD Panel displays preview/program status as a large tally.
Dependable Recording/Streaming
The 3 USB ports or NAS storage capture all E3 inputs in.MOV/.MP4. It streams and records for post-production and use.
