- 💥 EXTREME 5000W PEAK POWER FOR PRO AUDIO SYSTEMS: This top-tier Gemini 5000 watt amp pushes 2x550W RMS at 4Ω stereo and 1100W bridged, giving DJs, sound engineers, and event producers high-output audio with room-shaking clarity.

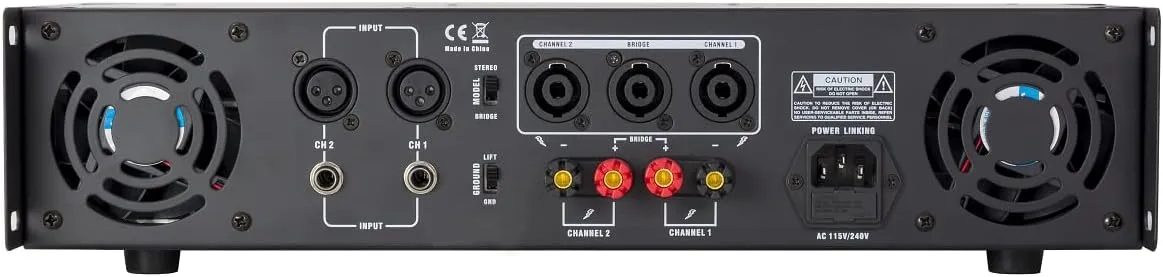

- 🎚️ WIDE-RANGE INPUTS & OUTPUTS FOR COMPLETE CONTROL: With XLR, 1/4" TRS, and RCA inputs, plus 3 Speakon and 5-way banana plug outputs, this gemini pro amp gives you pro-level connection options for any live sound or installed system.
- 🛡️ PREMIUM PROTECTION FOR CRITICAL AUDIO GEAR: Limiter, short circuit, and DC output protection ensure your speakers and amp remain secure—even at max volume or in unpredictable environments. Perfect for heavy-duty gigs.
- 🌬️ INDUSTRIAL AIRFLOW COOLING FOR HIGH-DEMAND USAGE: Gemini’s front-to-rear fan system and rugged build help prevent overheating during long shows or outdoor events—making this a trusted choice for pros needing nonstop reliability.

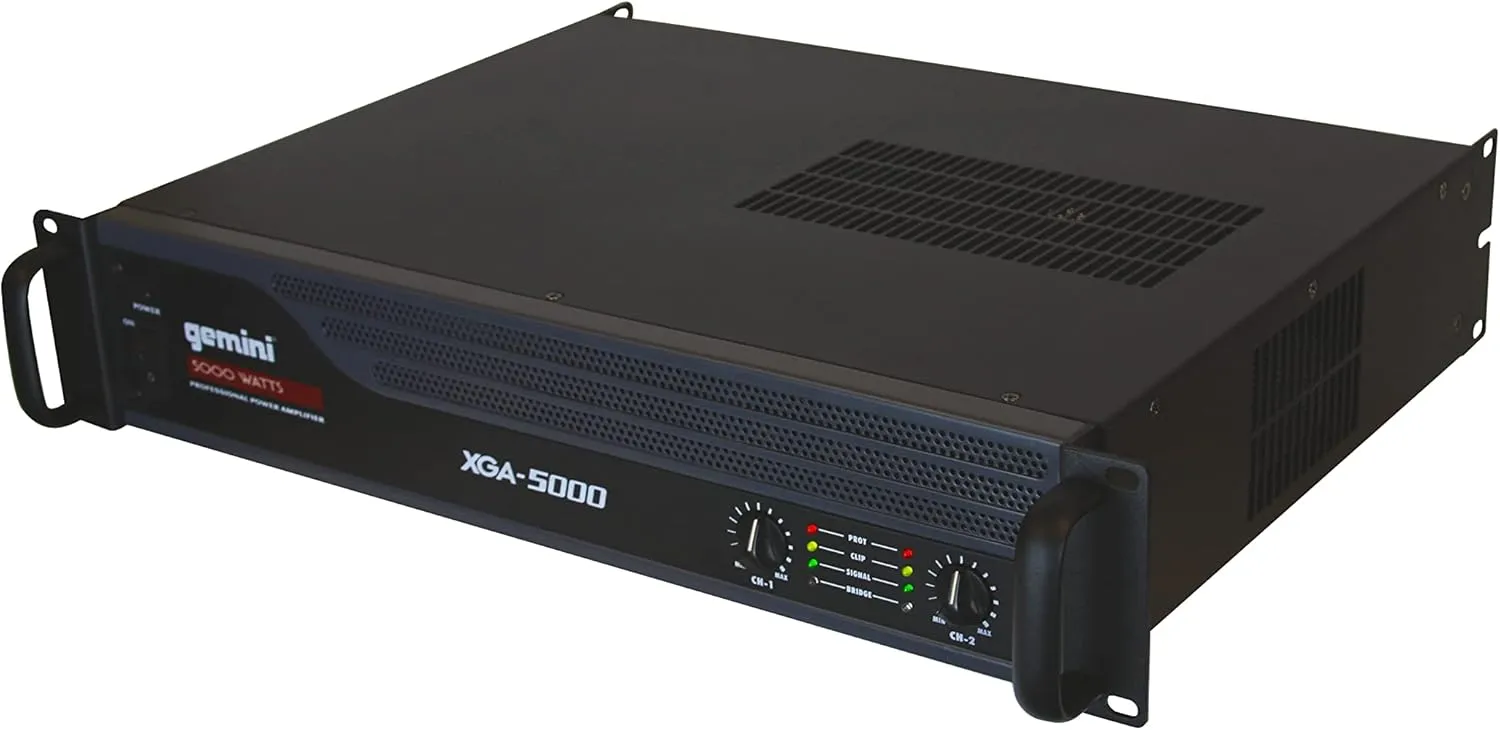

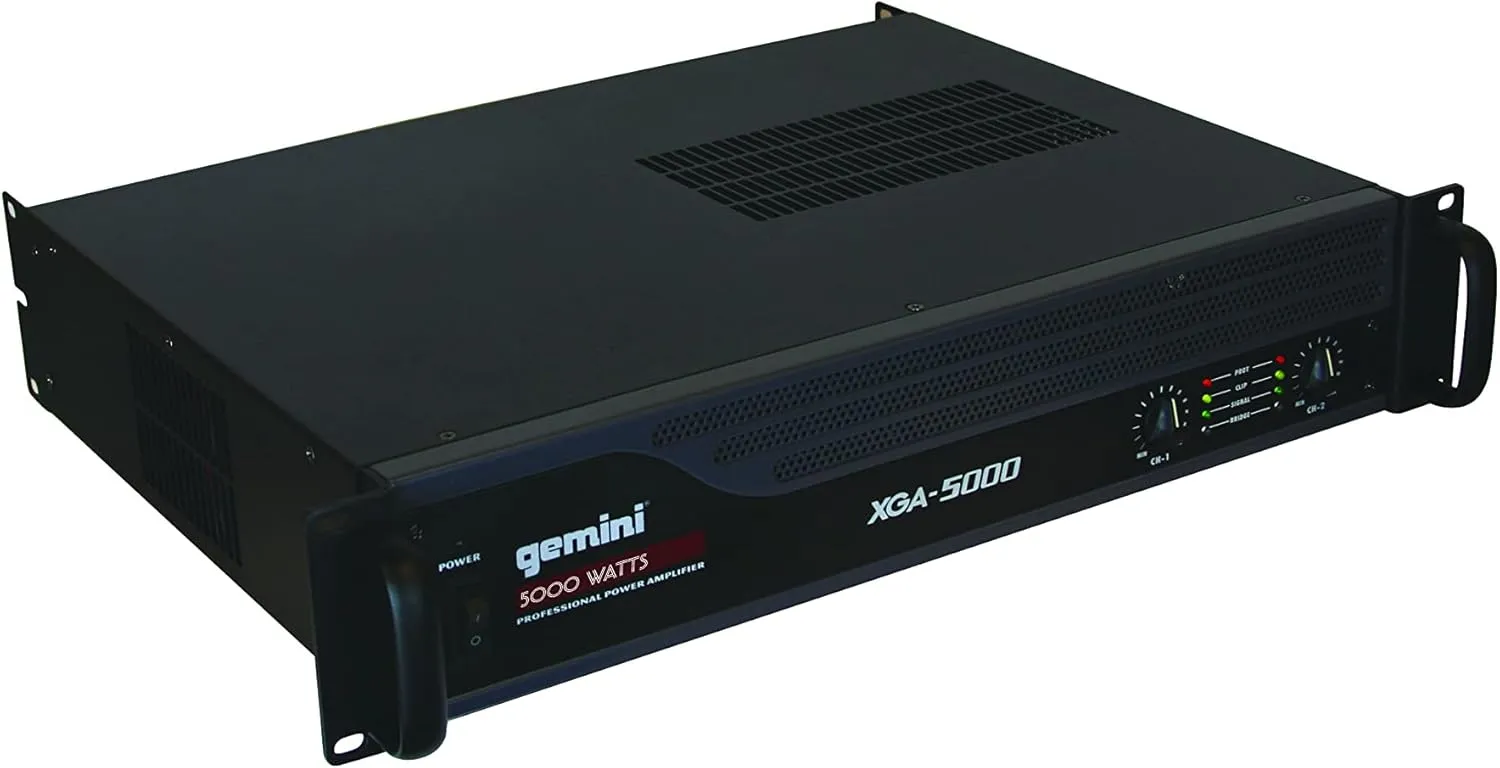

- 🧱 HEAVY-DUTY RACKMOUNT CONSTRUCTION: With a solid 2U rackmount chassis and pro-grade components, the XGA-5000 is built to endure transport, install, and high-use applications. It’s the ultimate power amplifier for speakers at scale.

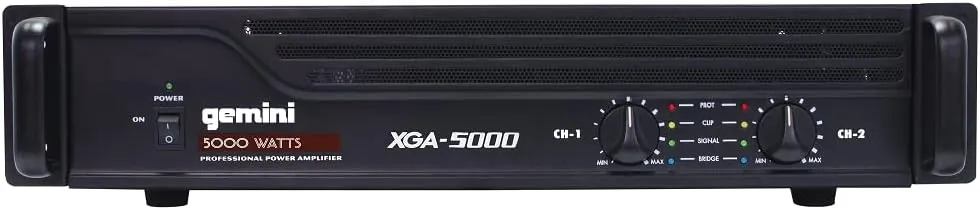

The XGA Series of power amplifiers from Gemini offer clean, reliable power to heighten the crowd's experience, leaving them with the unforgettable memory of your performance. Receive pure, consistent wattage night after night for the lifetime of the amplifier. The performance of this amplifier is highlighted by the 5000 watts of Instant Peak Power, making it an ideal solution for powering PA systems and DJ rigs. The XGA-5000 also features a frequency response of 10Hz-50kHz at 1.5dB, total harmonic distortion of less than 0.1%, and input sensitivity and impedance of 0.77v for the ultimate premium performance capabilities. For a full-range of connecting opportunities, the XGA family hosts XLR and ¼-inch balanced inputs with three SpeakOn outputs. The XGA unit also includes front panel indicators for Signal, Clip, Protect and Bridge keep your unit properly protected and connected. A front-to-rear airflow and cooling fan provides thermal stability and reliability, and the constant speed of the fan provides a low level of unwanted noise. Level controls for channels 1 and 2, DC Output protection and Short Circuit protection give you the ultimate preventability for misuse and seamless results. Selectable modes for Stereo and Mono Bridge give you even more flexibility, while its sleek, lightweight design ensures total portability. The XGA-5000 unit measures 19"L x 13.8"W x 3.5"H to perfectly fit any DJ equipment collection. At Gemini, our goal is to design products that offer value and innovation in the DJ and Pro Audio markets. Since 1974, we’ve evolved and thrived by understanding the needs of our customers and recognizing industry trends. From our humble beginnings, we understood the potential of the DJ movement, and our ability to support this movement not only helped us grow as a company, it helped DJs gain recognition and esteem, calling deserved attention to their roles as artists and performers. Specifications: Frequency Response 10Hz ~ 50kHz ±1.5dB Signal to Noise (LF / HF)>90dB THD (LF / HF)> 0.1% Input Sensitivity 0.77v Maximum Input Level 21dBv/9v Damping Factor (F=1kHz 8Ω)>350 Input Impedance 20K Ω Fuse 5mm x 20mm AC 115v/230v 50~60Hz Output Stereo 8 Ω 2 x 400W RMS Output Stereo 4 Ω 2 x 550W RMS Output Bridged 8 Ω 1100W RMS Dimensions (WxDxH) 19” x 13.8” x 3.5” (482mm x 350mm x 88mm) Net Weight 26.8 lbs. (12.1 kg)
