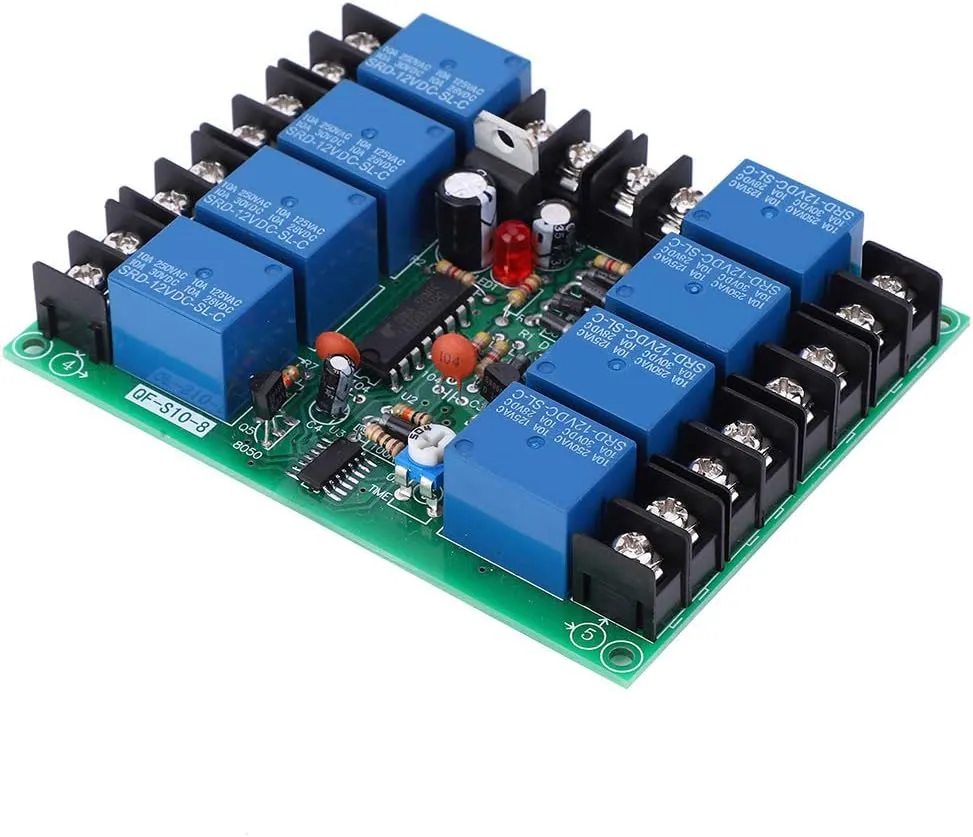

- 【8 Channels】 This time sequence board is 8 channels power time sequence board, which start in sequence and stop in reverse.
- 【Useage】 Mainly used for time-sharing start of power distribution to prevent excessive starting current at the same time.
- 【Time Interval Adjustment Range】0.2-4.0 seconds
- 【Output Method】 The output is passive output (ie dry contact), NC-COM (normally open-common).
- 【Application】 Suitable for audio equipment in stage, KTV, to prevent erroneous startup or simultaneous startup to damage the equipment.
Specification:
Item Type: Power Time Sequence Board
Power Supply: 12V DC or AC, the minimum required current is 400mA, available in the range of 10V-17V.
Number of Output Channels: 8
Output Capacity: 10A maximum per channel, 0-250V AC (or 30V DC)
Output Method: Passive output (ie dry contact), relay NC-COM (normally open-public)
Time Interval Adjustment Range: 0.2-4.0 seconds
Response Speed: 20mS (20ms)
Application Range:
1. The power distribution unit is started at different times to prevent excessive starting current at the same time.
2. Stage, KTV and other occasions to prevent the wrong start or simultaneous start damage equipment.
Package List:
1 x Power Time Sequence Board
