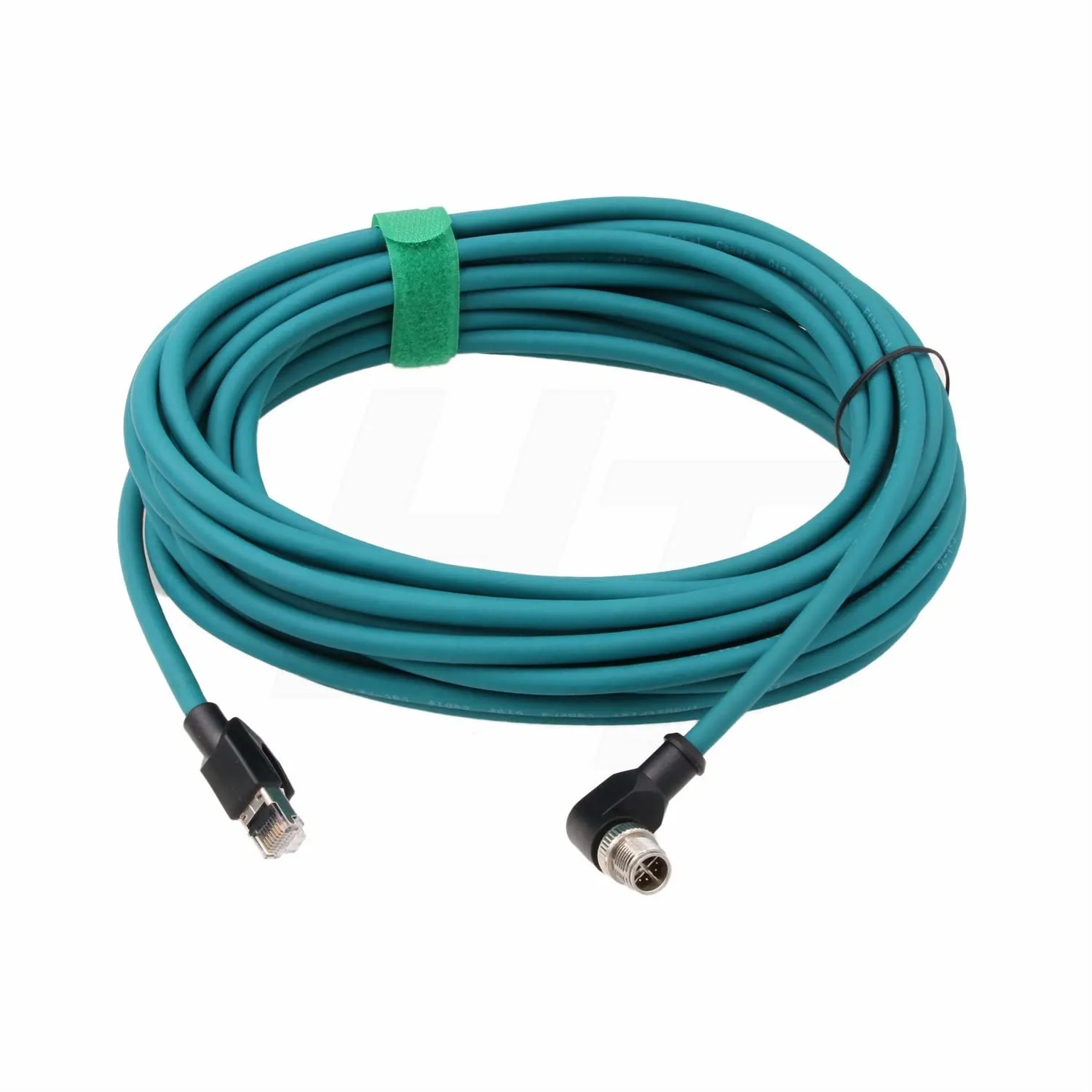

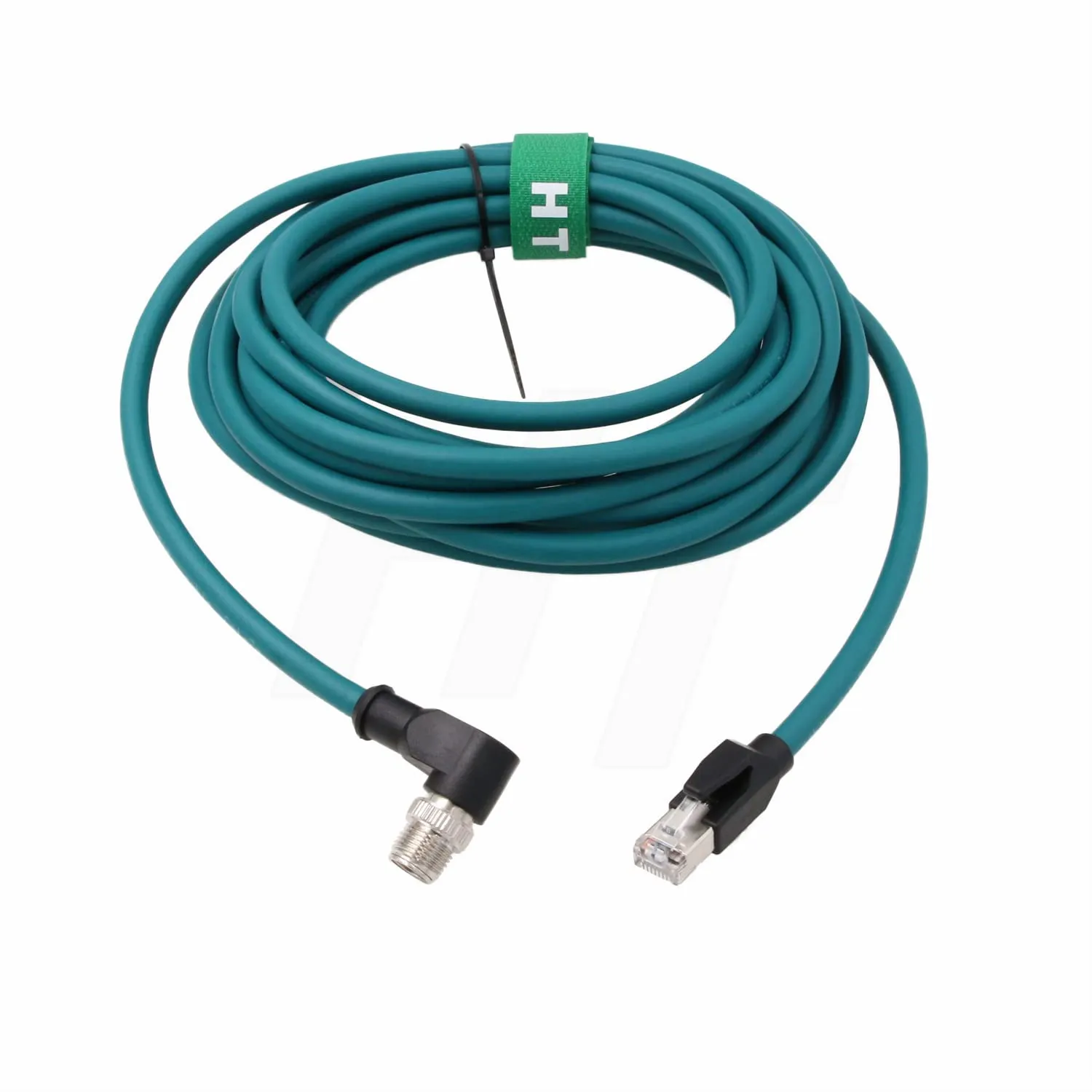

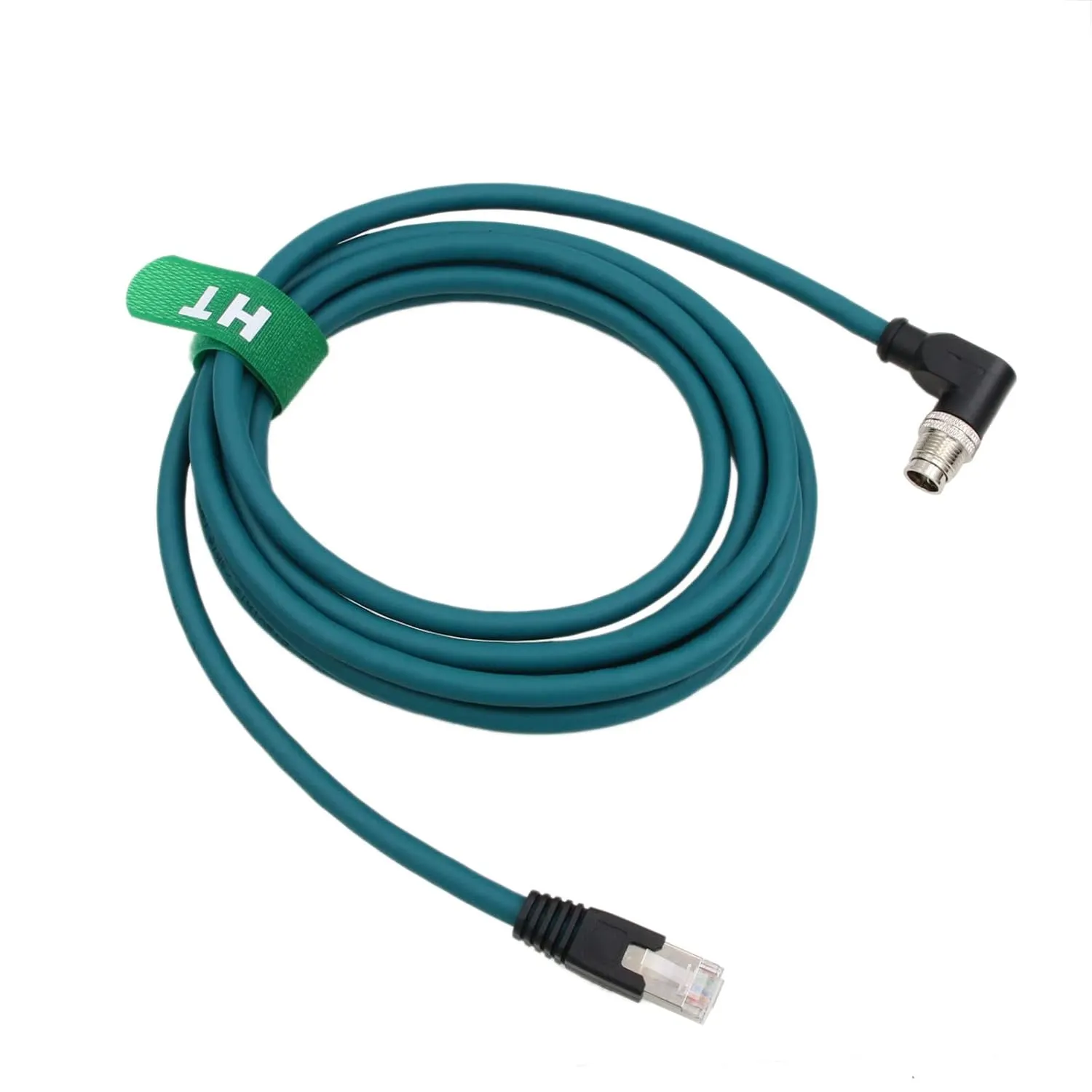

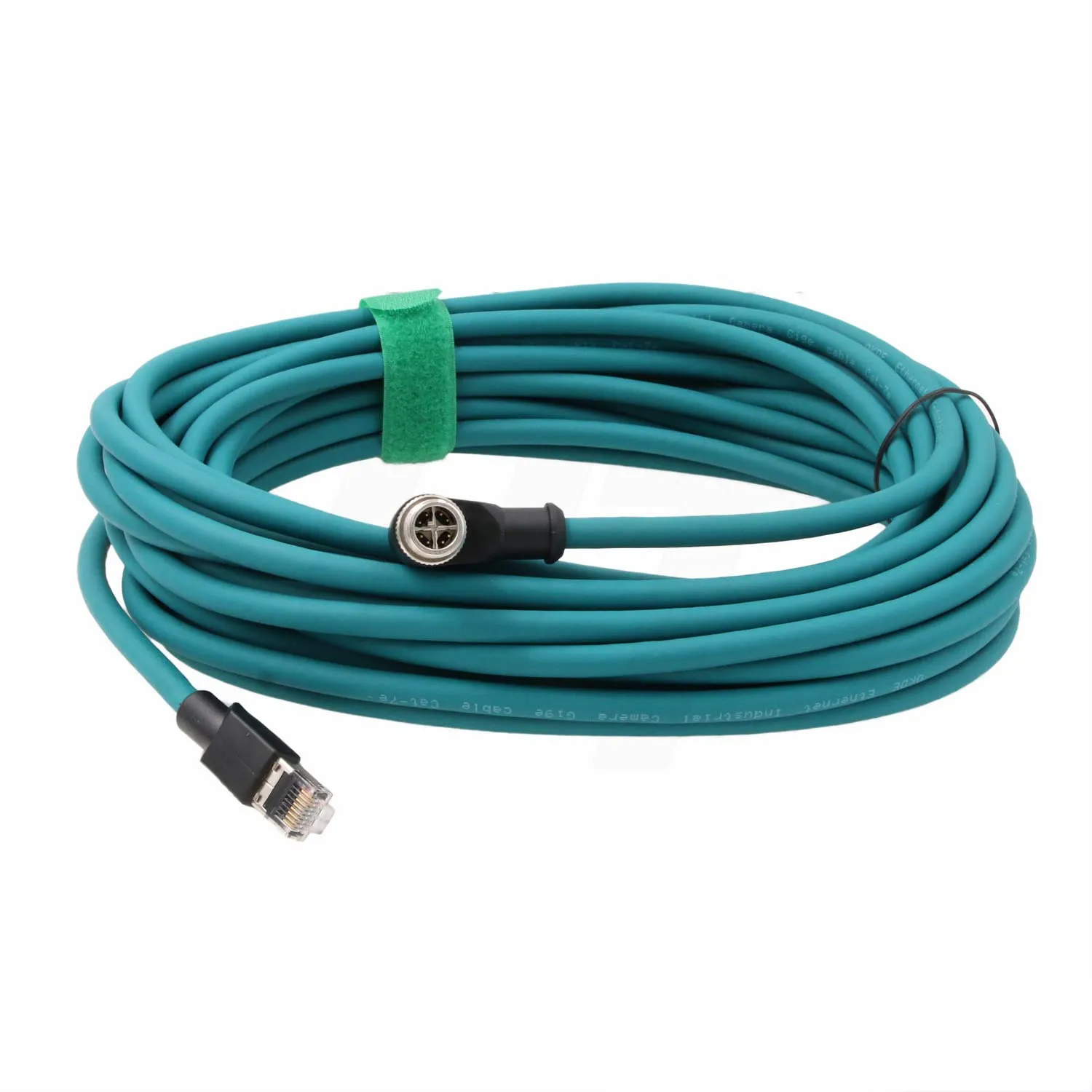

• Ethernet M12 X-coded 8 pin male right angled to RJ45 connector network data CAT 7e cable for Cognex DataMan 260 280 380 370 470 580 reader / In-Sight 2800 3800 2000 9000 8000, 7000 Gen2 vision sensor, 3D-L4000 D900. 10 meter /32.8 feet. Part number CCB-84901-2002-xx
• M12 Ethernet cable for Basler Baumer image processing vision sensor, for Keyence IV3 sensor / SR-5000 barcode reader, for Datalogic matrix 220 320 reader, for Microscan HAWK MV-4000 camera, for SICK sensor gigabit network, for Triton, and more machine vision system to network communication application like PC host computer PLC router switches

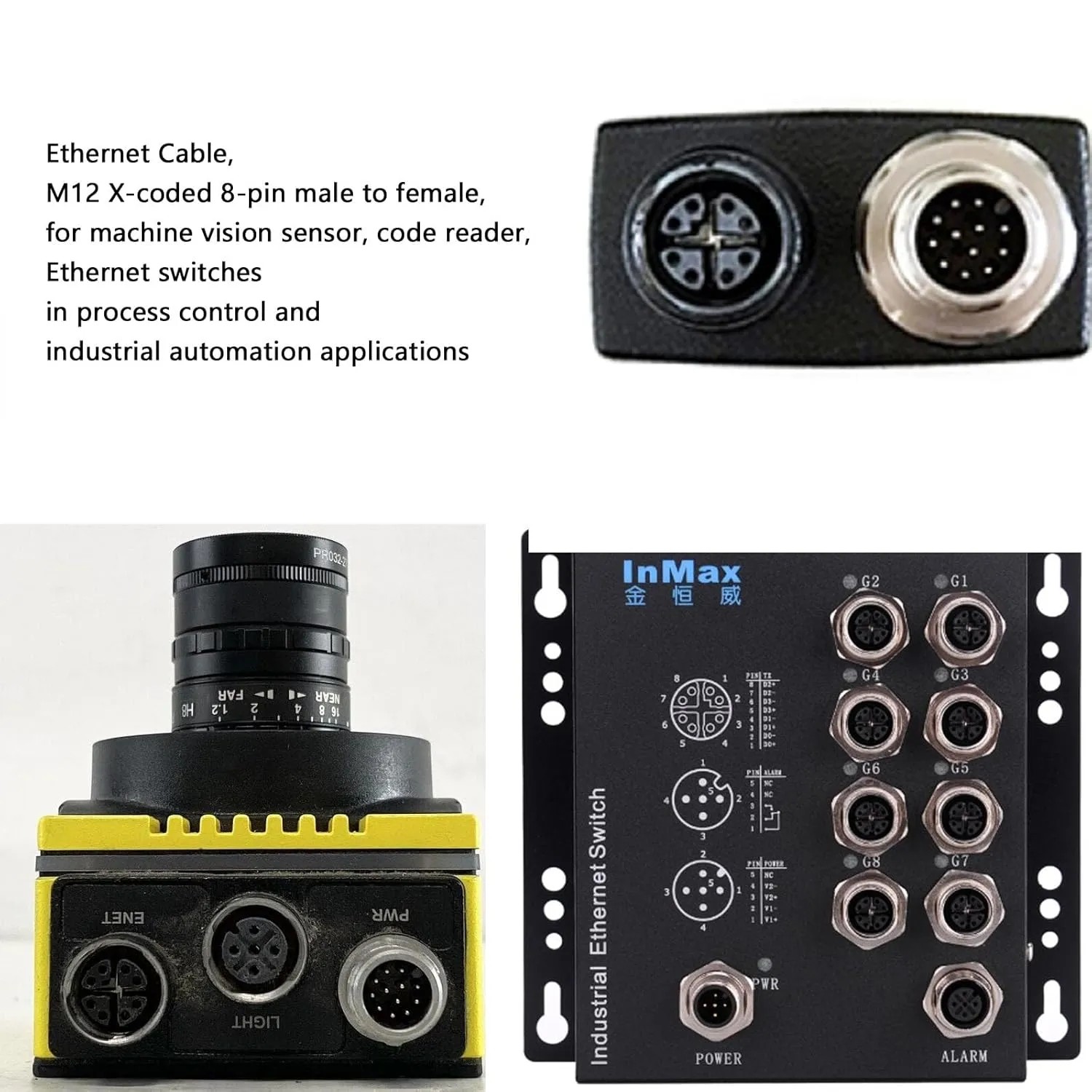

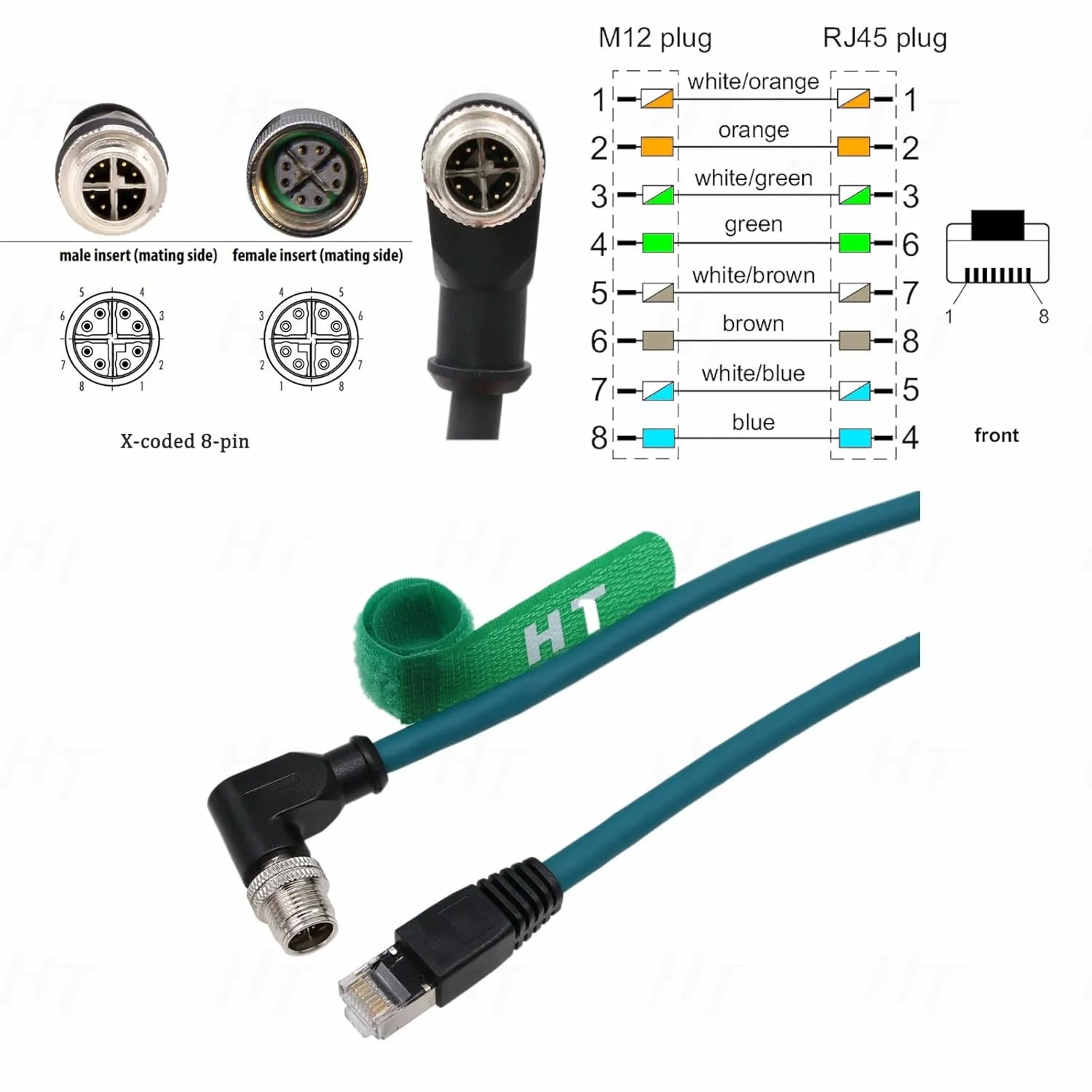

• M12 cable is widely used in sensor, machine vision image sensor camera system, barcode scanner reader, actuator, encoder, industrial Ethernet, network, outdoor LED display, industrial automation control, servo, motor, robot, fieldbus, EtherNet/IP, profinet, EtherCAT, switches, router, PC host computers, PLC, process control, PoE injector power. Stanard EIA/TIA 568B

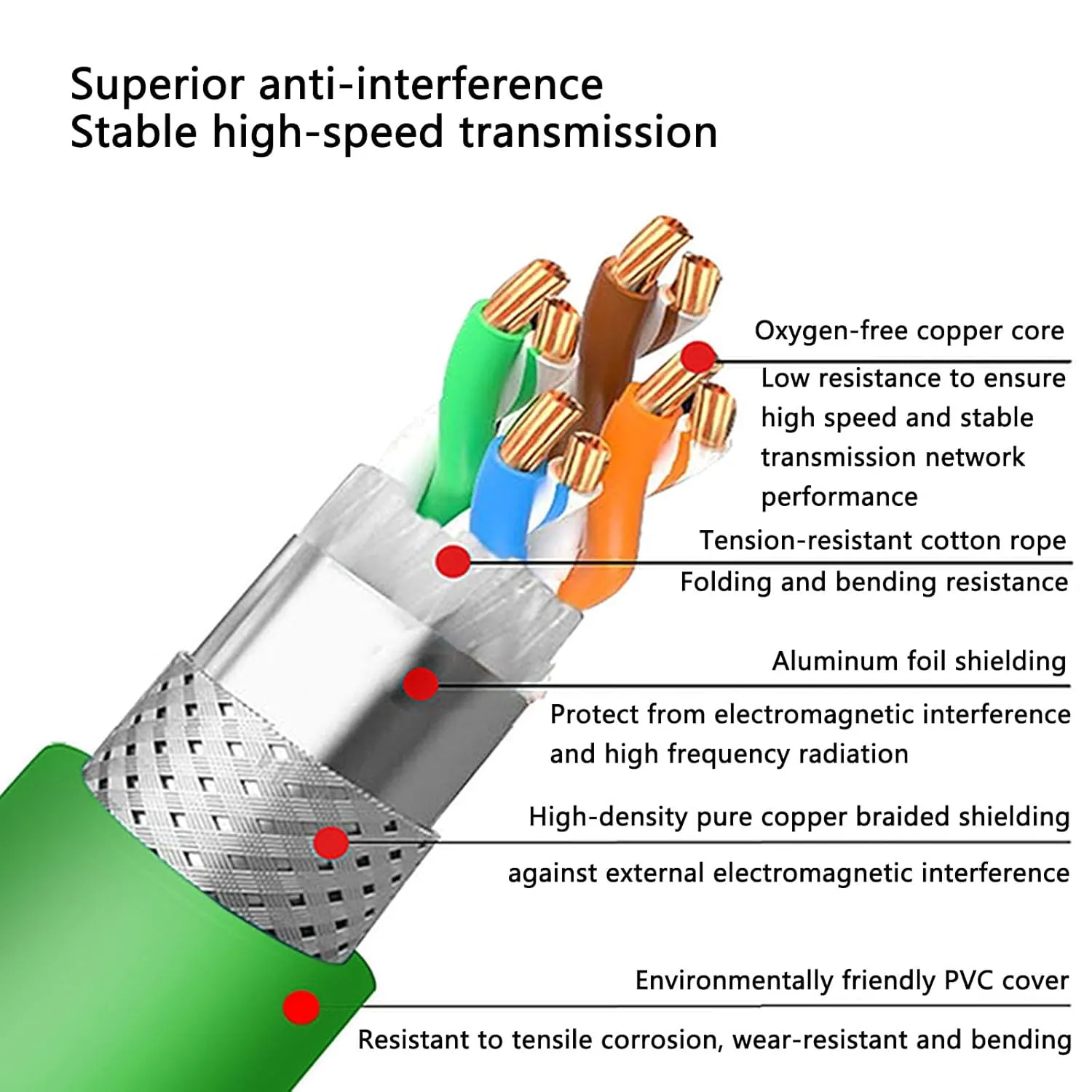

• The cable can effectively avoid electromagnetic interference signals, and can transmit data high speed and stability, up to 10 Gbps. Cable with multi-layer aluminum foil braid shield, cotton wire filling, twisted pair 24AWG PVC dark-blue jacket. The cable is resistant to abrasion, oil, dirt, oxidation, bending, heat, flame retardant. It is highly flexible, stretch resistant, sun UV resistant, waterproof dust-proof IP67 and can be used in drag chains and harsh industrial environments
• Connector features: solid and smooth connection. Shielded, threaded locking M12 plug with strain relief for durable stable use in harsh industrial application. Oxygen-free copper gold-plated contacts. It is vibration-resistant. Metal housing (with shielding) can be shielded from EMI / RFI interference in all directions, and meet the IP67 level of dust and water resistance standards
