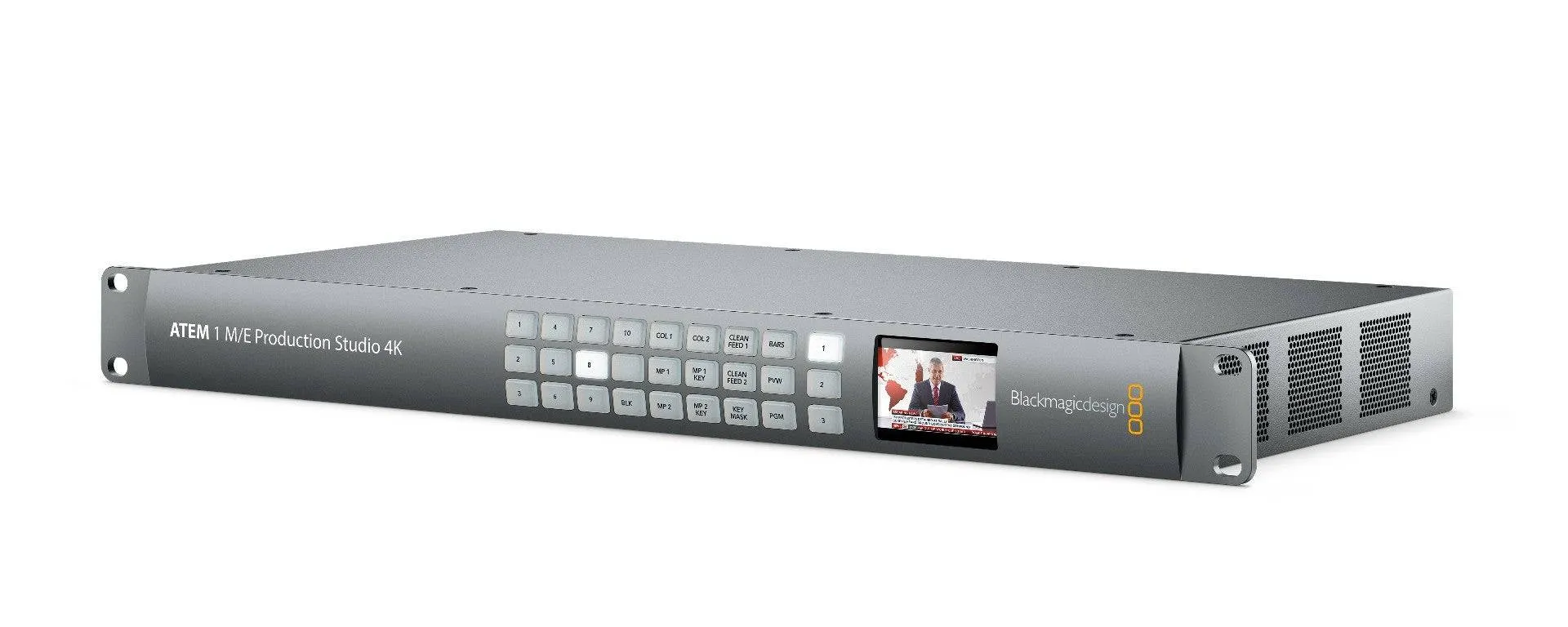

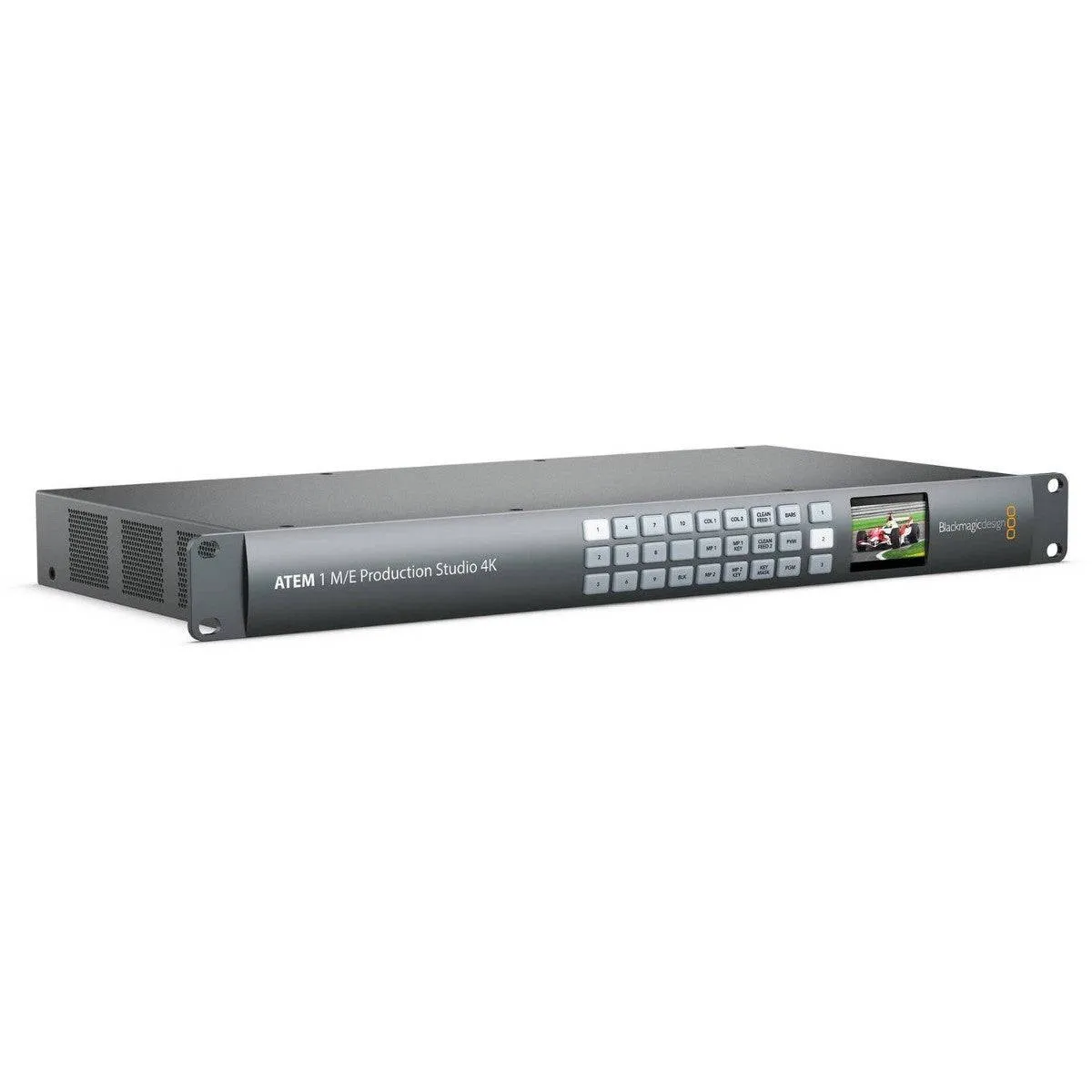

The Blackmagic Design ATEM 1 M/E Production Studio 4K model switches between SD, HD, or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders, and computers. It features 10 inputs, chroma keys, transitions, a media pool, 4 upstream keyers, downstream keyers, an audio mixer, multi-view, full motion DVE, stinger transitions, a large media pool with full motion clips, and 3 auxiliary outputs!

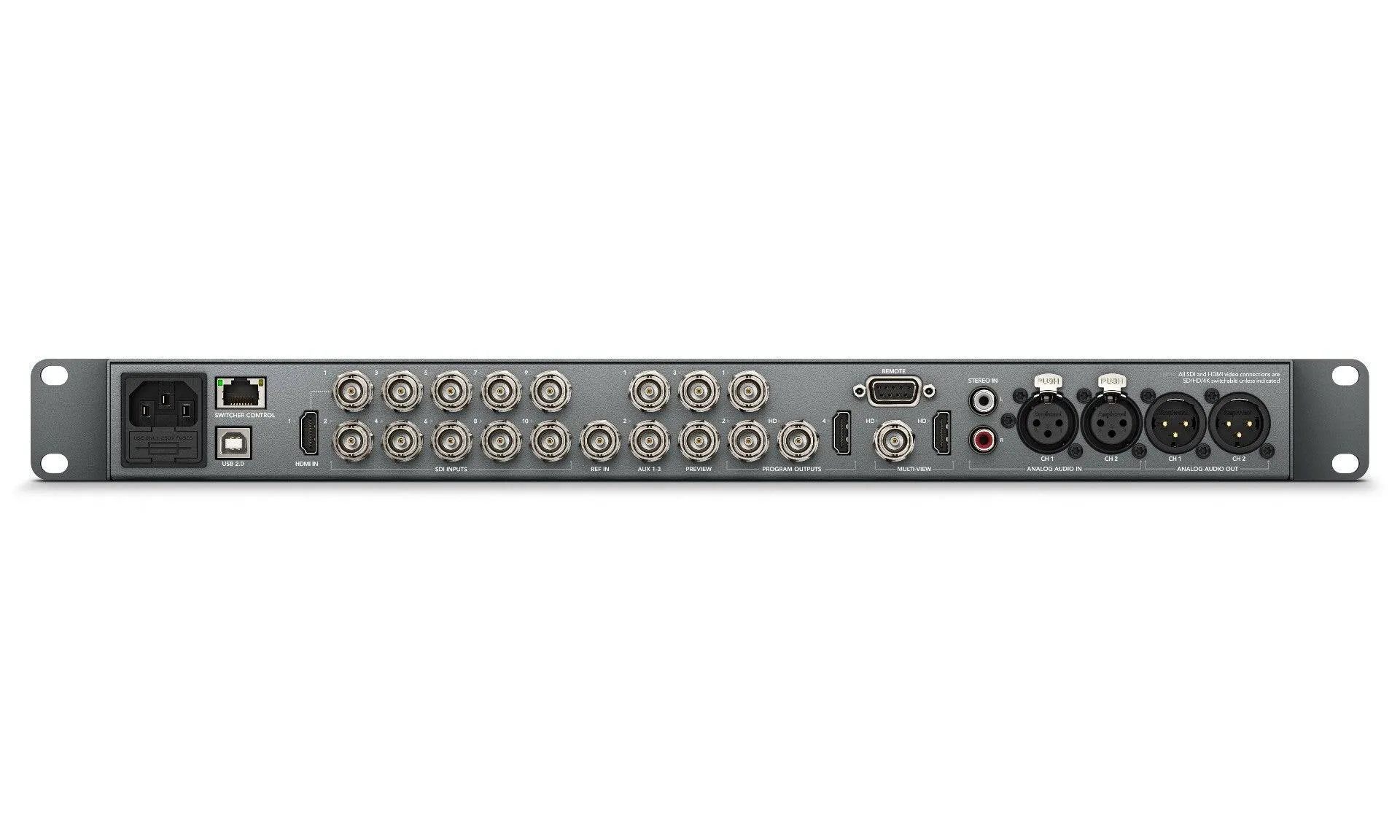

Several sufficient major connectivities are available in this ATEM 1 M/E Production Studio 4K, such as SDI and HDMI for input with 2 channels for embedded audio and the audio input itself has Digital (embedded audio via SDI or HDMI) and Analog (XLR and RCA). In addition, there are still plenty of connections such as Sync input and output: Frame Synchronizer, Program, Auxiliary, Multi-View, Preview (PVW), SDI Audio, Analog Audio, Ethernet, and Tally (via Ethernet connection).
Blackmagic ATEM 1 M/E Production Studio 4K allows users to connect 10 video cameras, disk recorders, and computers for live production. The ATEM 1 M/E Production Studio 4K is a professional switcher with 4 chroma keyers, full motion DVE, transitions, a large media pool, 2 downstream keyers, 3 independent aux outputs, a multi-channel audio mixer, multi view, re-sync on all video inputs, and the latest 6G-SDI and HDMI 4K video technology.
ATEM Production Studio 4K also comes with a built-in 12-channel audio mixer as well as balanced and unbalanced Analog audio for flexibility of audio options. You can also control this unit via Mac or PC computers with the included ATEM Software Control. Adding the ATEM ME 1 and ME 2 Broadcast Control Panel will ease the usage of this device.
ATEM 1 M/E Production Studio 4K Features:
- Supports NTSC/PAL/HD/UltraHD 4K @ 10-bit
- Supports 4K Resolution Over SDI or HDMI
- 10 x 6G-SDI & 1 x HDMI Inputs (SD/HD/4K)
- Tri-Sync/Blackburst Ref. Sync Input
- 10 x Built-In Frame Synchronizers
- Multiview Monitoring in HD
- Program Outputs in SD/HD/4K HD
- 4 x Keyers Total: 3 x Luma, 1 x Chroma
- 12 x Channel Audio Mixer
- Hardware or Software Mac/PC Control
