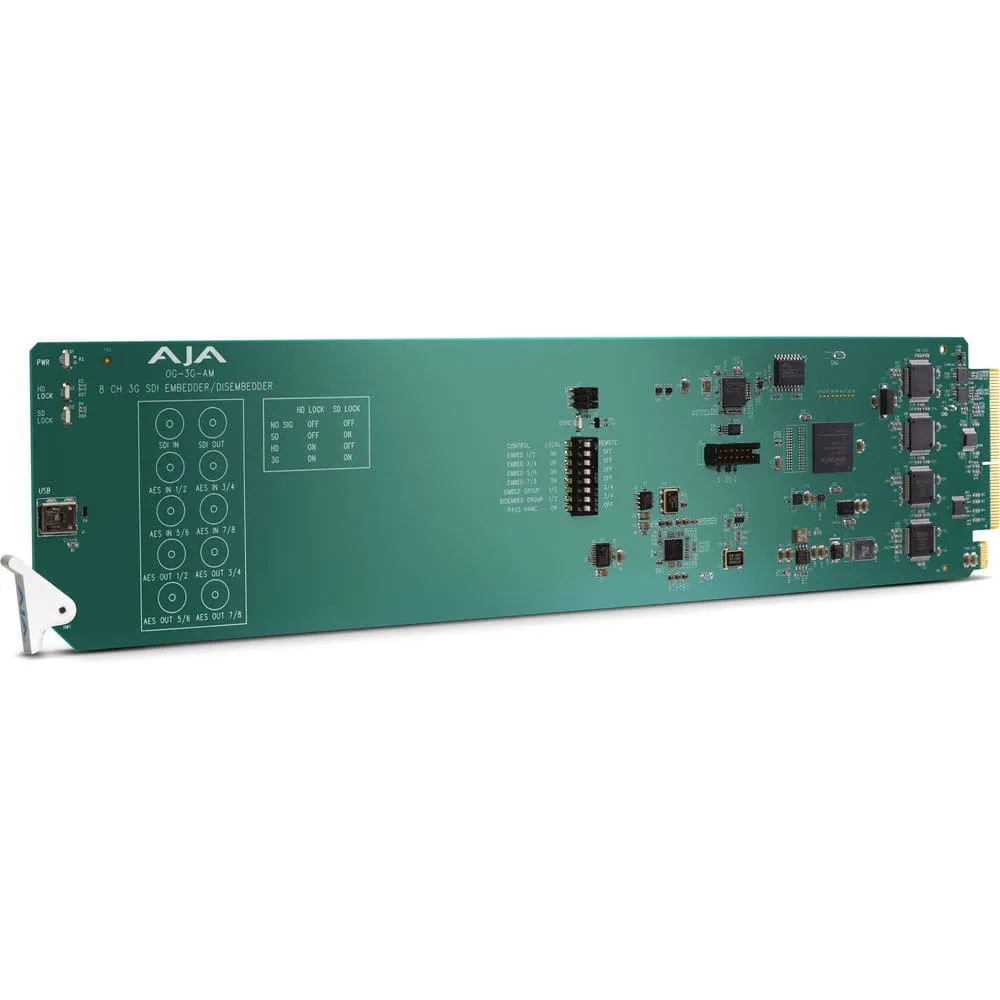

The AJA OG-3G-AM 8-Channel AES Audio Embedder/Disembedder is an 8-Channels of AES audio Embedder/Disembedder with an assistant for 3G-SDI input and output reach, up to 1080p 60. As of the audio disembedding, it works functionally and serves 4 AES outputs. Any user can have the audio embedding by selecting it, in a channel pair basis, either pass 3G-SDI input audio or embed input AES audio from the breakout cable. Each AES inputs can be converted to the 48 kHz rate easily to the video input.
OG-3G-AM Features:
- 3G-SDI Embedder / Disembedder in one board
- Input: 1 x 3G-SDI, BNC connector
- 4 x AES, BNC connector (2 channels per input)
- Outputs: 1 x 3G-SDI, BNC connector
- 4 x AES, BNC connector (2 channels per output)
- Local and Remote modes
- Pass or drop non-audio HANC packets
- Configure via USB and Mini-Config software or DIP switch
- Power: 5.0 watts
- Compatible with DFR-8321 and OG3 openGear frames
A main distinctive feature of this 3G-AM, is the automatic detection and configuration to the input video. All the user controls can have a simple operation and enable channel mapping. There are 2 audio data formats: AES3-2003 and the SMPTE 337M and converted to 24-bit. Options that the user can have for the supplied breakout cable cover XLR or BNC breakout cable.
Given the 3G-AM is compact and portable, this converter can fit the space behind the monitor. The Aja’s free Mini-Configuration software works well with any USB-enabled AJA Mini-Converter that serves easy-to-use graphical devices with complete information of the modern input and output formats.
