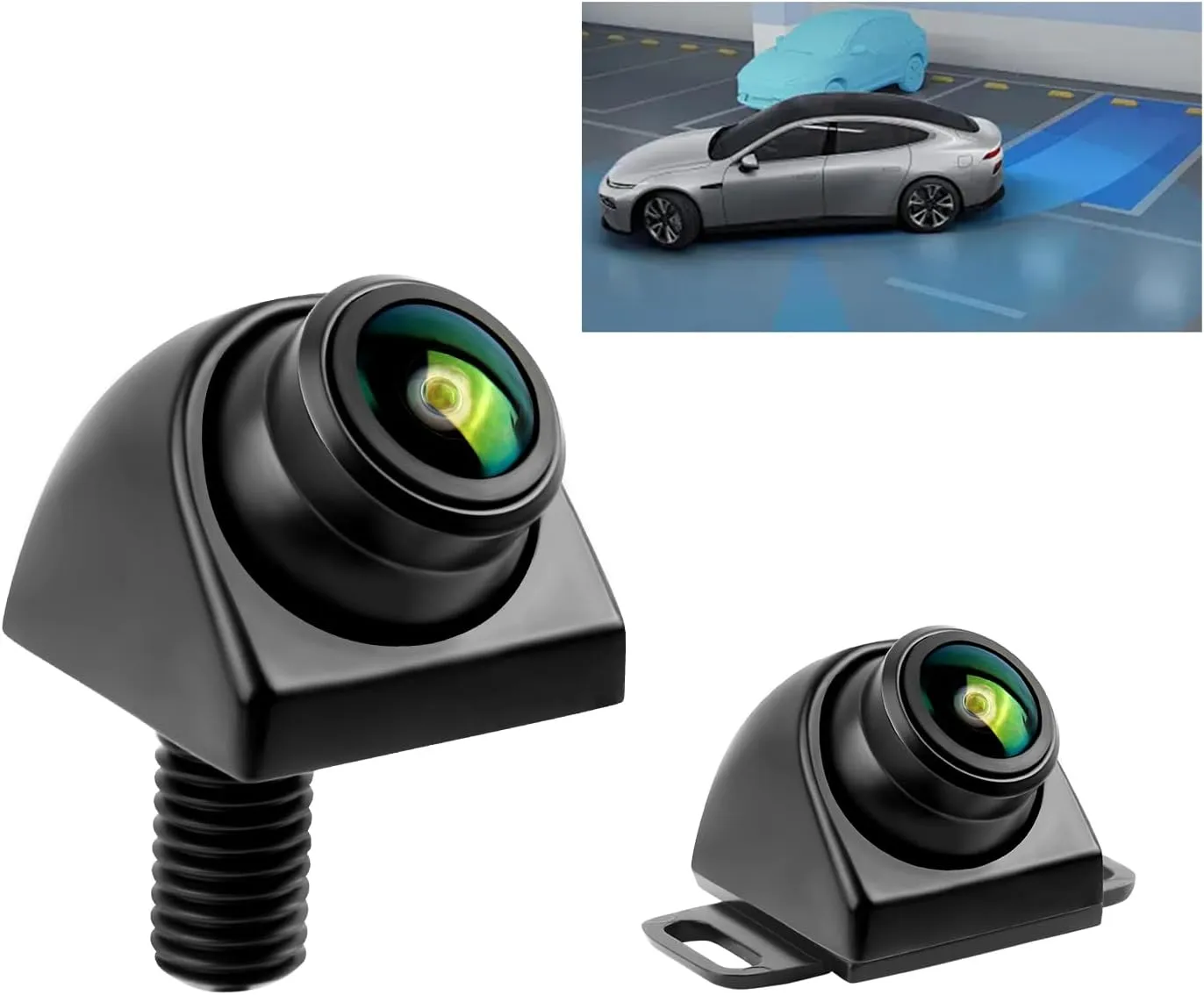

- Dual-use & Compatible: Car camera is equipped with no-drill and bolt hole covers for your multi-position mounting needs, and specially equipped with a 4-pin to AV connector adapter cable, which is compatible with both 4-pin and AV connectors
- 360° Rotation Night Vision: This 360° rotatable rear camera allows for dead-angle surveillance and full control of your surroundings. Its clear night imaging is designed to provide a clear picture in the absence of lighting to avoid collision
- Waterproof 160° Wide-angle: Our car backup camera adopts 160° wide-angle lens, which can capture rear and side view in a single frame, reducing the blind spot by 50%, IP68 waterproof, no more nervous about backing up in rainy days
- 3 Support Modes: Our rear view camera supports 3 control modes, the green line is used to switch with or without distance guidance, the white line is used to switch front and rear view angles, the orange line is used to switch AHD 720p mode to CVBS mode
- Installation: Just connect the 4-pin cable directly. If it can't be displayed, please check if the red wire of camera is connected to the reverse light and the RCA cable is plugged into the AUX port. More can refer to the picture detail description
160° WIDE ANGLE IP WATERPROOF, NO BLIND SPOT AND NO DEAD ANGLE FOR BACKING UP - MAKE EVERY BACKING UP EASY AND COMFORTABLE
Product Attributes
Colors: Black
Sizes:
Lens Diameter: 0.47 inch, Cover: 1.66*1.18 inch, Video Cable Length: 6 m/236.22 inch, Power Cable Length: 1 m/39.37 inch
Weight: 6.28 oz
Material: Metal, Glass, Wire
Packaging: Rear View Camera*1, 6 m Video Cable*1, Sponge Double Sided Tape*1, Red Double Sided Tape*1, Screw*2, Nut*1, L-shaped Small Screwdriver*1, Metal Mounted Back Cover*1, 4-pin to AV Connector Connection Cable*1, 1 m Power Cable*1, Product Manual*1
Product Specifications
Working Voltage: 12V
Image Device: CMOS / AHD
TV System: PAL / NTSC
Lens Angle: 160° / Effective Pixels: 2 Million
Waterproof Rating: IP68
Product Functions & Features
Traditional 120 ° camera field of view is limited, we use 160 ° wide-angle IP68 waterproof grade reversing camera, reversing from now on no fear of the wind and rain, large field of view all-weather waterproof, to avoid collision accidents, guard your safety
No dead-angle monitoring, full control of the surrounding environment. 360-degree rotating lens to adjust the viewing angle in real time, covering the blind spot around the vehicle to avoid cuts or collisions, accurately capture the parking space line and the location of obstacles, a garage success rate increased by 50%
Three modes can be switched arbitrarily, the line is used to switch with or without distance guidance, the white line is used to switch the front and rear view angle, the orange line is used to switch the AHD 720p mode to CVBS mode
Product Installation
When installing, just connect the 4-hole cable directly
If it can't be displayed, please check as following steps:
1. Whether the red wire of the rear camera is connected to the reverse light
2. Check if the RCA cable is plugged into the AUX video port
3. Then please adjust the device to AHD 720p mode
4. If there is still a problem, try to restart the device by disconnecting the orange wire and change it to CVBS NTSC mode
5. Finally, the rear camera should be powered by the rear lights
Tips
1. Our camera can't be connected directly to the car recorder, only to the monitor
2. If you have a monitor that requires a specialized camera, our camera will not work. If your monitor does not support AHD, select CVBS mode
